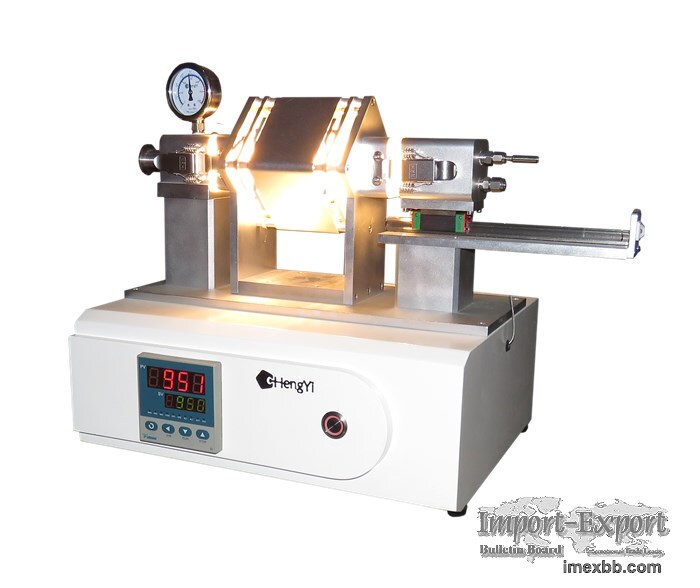

Mini RTP 1200 degree Tube Furnace with Halogen Tube

Mini RTP 1200 degree Tube Furnace with Halogen Tube Tube Furnace with Quartz
Tube RTP Tube Furnace for Lab

CHENGYI Tube Furnace with Quartz Tube APPLICATION
1.Fast Annealing,Post-ion implantation annealing
2.RTO,RTN
3.Silicidation
4.Diff , usion
5.Electrode alloying
6.Crystallization and densification

RTP Tube Furnace PARAMETERS
Product Name Mini RTP Tube Furnace
Model Mini-RTP
Furnace Type Fast Heating/Cooling Sintering
Display Model LED Digital Light
Maximum Temperature 1100℃
Working Temperature ≤1000℃
Heating rate ≤20℃/Second
Heating zones Single heating zone
Quartz Tube Diameter O.D50*600mm
Inner Diameter I.D 42*600mm
Heating Zone Length  100mm
Max Sample 35*25mm
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Temperature curve 30 segments programmable
Over heat alarm Have
Overcurrent protection Have
Thermocouple Failure Protection Have
Temperature Sensor K-type thermocouple
Heating Element 3pieces Infrared tube
Quartz Tube Material High Purity Quartz
After-sales service 12 month warranty, durable maintaince and repair
support
Power Supply 220V  50HZ
Rated power 1.5kw
Overall dimensions 610×400×410 (mm )
Packing 3-ply wooden case
Accessories Protective Glove,Crucible Tong,Crucible,Quartz Tube,Vacuum
Flange,User Manual.

As a professional tube furnace exporter, we can supply high quality laboratory
tube furnace with cheap price. For more industry information, view
www.hnchengyi.com online today.

Minimum Order: 1 sets
