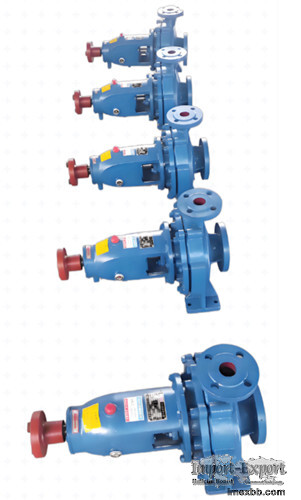

CIS industrial marine end suction centrifugal pump

CIS Industrial marine end suction centrifugal pump
CIS pump refers to the CIS series marine horizontal centrifugal pump, which is a
single-stage single suction centrifugal pump mainly designed for marine
environments and can also be widely used in industrial and agricultural fields. ‌
Core Features
Applicable medium: It can transport seawater, fresh water, and other liquids with
physical and chemical properties similar to water.
Main uses: often used as fire pumps, cooling pumps, ballast pumps, general pumps,
and sanitary pumps on ships; In non marine scenarios, it can be used for urban
water supply and drainage, farmland irrigation, etc.
Rotation direction: From the drive end, the pump rotates clockwise.
Structural features: Adopting a horizontal structure, some models have a rear
opening door /back pull door design, which does not require disassembly of
pipelines and motors during maintenance, making maintenance convenient. ‌
CIR series: Same performance parameters and installation dimensions as CIS pumps,
but specifically designed for delivering hot water, with hot water temperatures
typically not exceeding 120 degrees Celsius. ‌
This series of pumps is usually equipped with a 380V/50Hz three-phase power supply,
with common speeds of 1450r/min or 2900r/min. The specific selection depends on the
flow rate and head parameters. ‌
Pump body/housing: cast iron
Impeller: bronze
Stainless steel pump shaft.

Minimum Order: 1 sets
