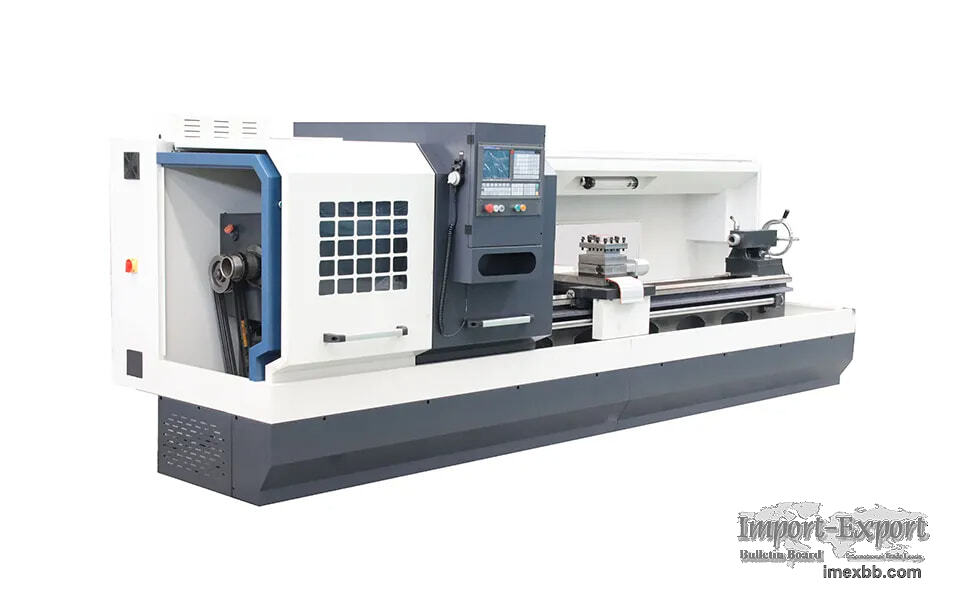

CK 61125 CNC lathe machines

CK61125-1000/1500/2000/3000+
The bed is integrally cast, the base is widened, the front and rear sinks, and
the front and rear through-type chip removal mechanism make it safer for
workers to clean the iron filings.
Heavy-duty tailstock, the tailstock sleeve has reached 130mm, with good load-
bearing capacity and more stable processing.
ACR Machine Tool CK61125 Specifications:
Max. Swing Over Bed: 1125 mm
X-axis Rail Span: 330 mm
Z-axis Rail Span: 1000/1500/2000/3000+ mm
Max. Swing Over Cross Slide: 850 mm
Distance Between Centers: 1000/1500/2000/3000+ mm
Maximum Turning Length: 1000/1500/2000/3000+ mm
Spindle Bore: Ф130 mm
Bar Diameter: Ф128 mm
Spindle Nose Type: A2-11
Spindle Bore Taper: MT5
Spindle Speed Steps: 30-84.5, 53-150, 125-350, 300-835 rpm
Tailstock Quill Diameter: 130 mm
Tailstock Quill Taper: MT6
Tailstock Quill Travel: 265 mm
Tailstock Configuration: Ordinary hand-crank
Number of Electric Tool Holder Positions: 4-position
Tool Shank Size: 32×32 mm
X/Z Axis Fast Movement Speed: 4 m/min (X-axis) / 5 m/min (Z-axis)
Minimum Setting Unit: 0.001 mm
Main Motor Power (Z Axis): 22 kW
Total Power Capacity: 30 kW
