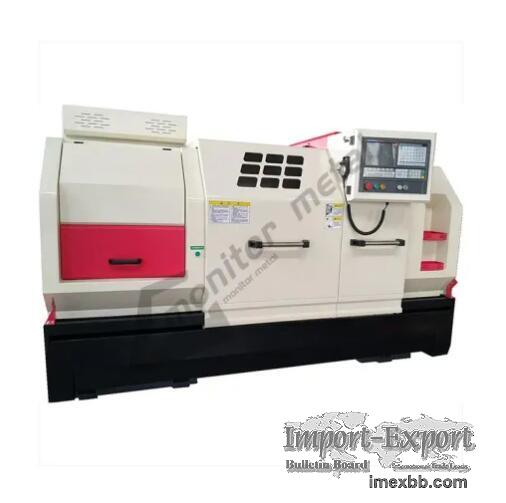

CKNC-40T Flat Type CNC Lathe

CKNC-40T Flat Type CNC Lathe’s structure usually consists of a lathe bed, a
spindle gearbox, a tailstock, a feed box, a lead screw, a polished rod, a tool
rest, a carriage box and the like.
Ordinary lathes have the characteristics of flexible operation, strong
structural rigidity and high power utilization rate, and are suitable for
machining shafts, disks, screws and special-shaped surfaces.
Flat Bed CNC Lathe Feature
Adopt high-quality cast iron (HT300/HT350), after aging treatment, to ensure
long-term stability.
Wide guide rail (linear guide rail or hard rail optional), strong vibration
resistance, suitable for heavy cutting.
1.High-precision processing
Spindle runout ≤ 0.003mm, repeat positioning accuracy ±0.005mm.
Optional hydraulic chuck and servo turret to improve processing efficiency.
2.Automation expansion
Support automatic feeder, manipulator, truss robot to achieve unmanned
production.
3.Multi-function configuration
C-axis power turret (turning and milling optional).
Tailstock/hydraulic tailstock (suitable for long axis processing).
