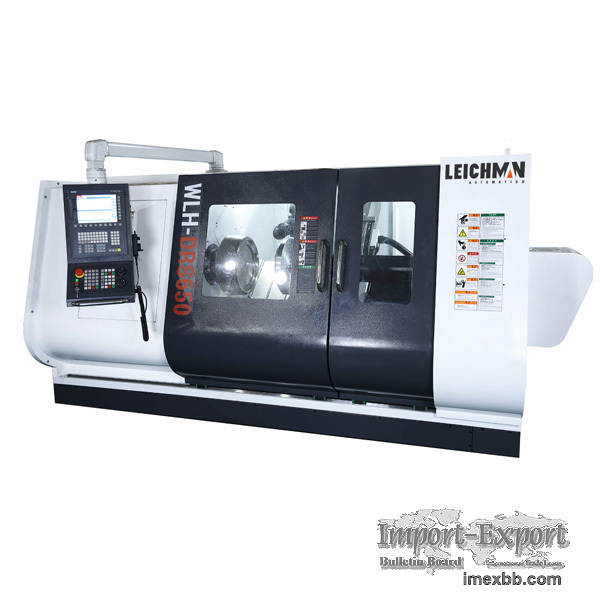

CNC Metal Spinning Machine WLH-DRS650

CNC Metal Spinning Machine WLH-DRS650
WLH series CNC Spinning and Turning Machine(Double Rollers) is especially
developed to spin kitchenwares, lamps, auto fittings, ventilations and art
wares. It has many patents issued by the State Intellectual Property
Office.This machine is practical, professional and strong. It has high
production efficiency and can complete horn, bucket, cone type, parabolic
products. It can also process threading, trimming, flanging and rolling at the
same machine tool. The machine can spin many materials such as carbon steel,
stainless steel,aluminum and copper etc. It has solved the traditional problems
such as lack of skilled workers. With advanced digital control, it is easy to
operate. The CNC Metal Spinning Machine can improve the production efficiency,
machining accuracy and saving the cost of human resources. It is the ideal
processing machine for light, automobile, military, mechanic and other
manufacturing industries.
Model WLH-DRS650
Amount of Rollers Sync 2+
Max.Diameter of Material Φ650 mm
Max.Swing Over Slide Φ300 mm
Max.Length of Work Piece 500 mm
Thickness of Work Piece 0.5-5.0 mm(Aluminum,Copper)
0.5-2.5 mm(Carbon Steel)
0.5-2.0 mm(Stainless Steel)
X Trave 230 mm
Z Trave 750 mm
Spindle Speed 2500 rpm
Taper of Tailstock Quil MT5
Travel of Tailstock 450 mm
Travel of Tailstock Quil 150 mm
Diameter of Tailstock Quil Φ82 mm
Amount of Tools/Shank Size 4+1/30x30 mm²
Spindle Motor Power 11 kw
Machining Accuracy It 6
Overall Dimensions 3200x2000x1800mm
