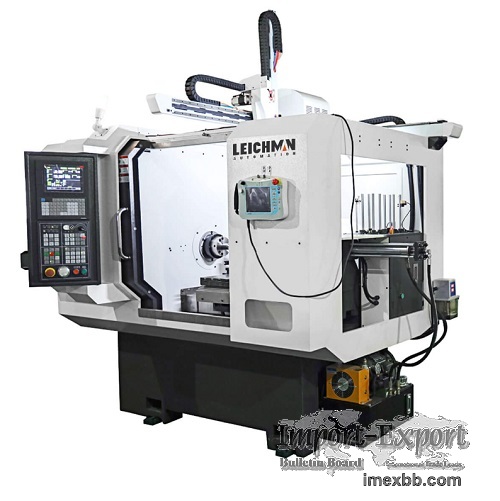

WLL series CNC Spinning and Turning Machine

WLL series CNC Spinning and Turning Machine
Product Description
WLL series CNC metal spinning machine(Single Roller) is especially developed to
spin lamps, lamps, art wares，kitchen wares and auto fittings. It has many
patents issued by the State Intellectual Property Office.This machine is
practical, professional and strong. It has high production efficiency and can
complete horn, bucket, cone type, parabolic products. It can also process
threading, trimming, flanging and rolling at the same machine tool. The machine
can spin many materials such as carbon steel, stainless steel,aluminum and
copper etc. It has solved the traditional problems such as lack of skilled
workers. With advanced digital control, it is easy to operate. The machine can
improve the production efficiency, machining accuracy and saving the cost of
human resources. It is the ideal processing machine for light, automobile,
military, mechanic and other manufacturing industries.
Model WLL-SRS350
Amount of Rollers 1+
Max.Diameter of Material Φ350 mm
Max.Length of Work Piece 400 mm
Thickness of Work Piece 0.5-2.0 mm(Aluminum,Copper)
0.5-1.2 mm(Carbon Steel)
0.5-1.0 mm(Stainless Steel)
X Trave 300 mm
Z Trave 380 mm
Spindle Speed 4000 rpm
Travel of Tailstock 300 mm
Amount of Tools 2+2/ Optional
Main Motor Power 3.7 kw Servo
Positioning Accuracy 0.01
CNC Metal Spinning Lathe Machine｜Spin Forming Machine
1. It could also be equipped with manipulator which could do the automatic
loading and unloading.
2. The machine is very stable with mature technology and now is highly
recognized by customers from all over the worlds.
3. It can also process threading, trimming, flanging and rolling at the same
machine tool. The machine can spin many materials such as carbon steel,
stainless steel, aluminum and copper etc.
4. It has solved the traditional problems such as lack of skilled workers. With
advanced digital control, it is easy to operate.
