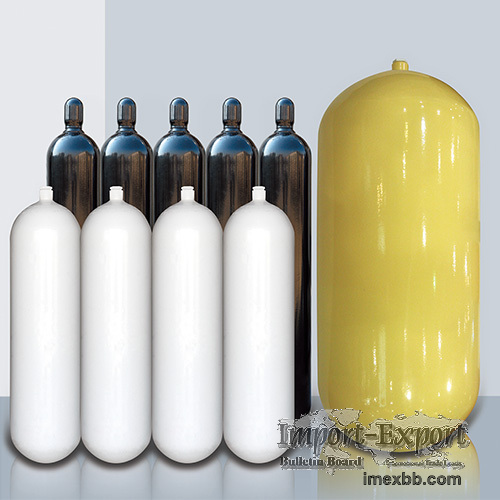

CNG Cylinder Type 1

These compact, lightweight cylinders are designed to meet or exceed the
requirements of shuttle buses, refuse trucks, fleet vehicles, commuter
vehicles, baggage handlers, chassis integrated vehicles and custom enclosed
space applications, delivering superior performance. Especially the safety
performance of CNG storage tanks.
Model Capacity(L) Height(mm) Weight(kg) Work Pressure(MPa)
Design Thickness(mm)
CNP20-20-232A 20 660 25 20 5.6
CNP20-28-232A 28 880 33 20 5.6
CNP20-34-232A 34 1040 38 20 5.6
CNP20-40-232A 40 1200 45 20 5.6
CNP20-35-267A 35 795 40.4 20 6.2
CNP20-40-267A 40 880 44.8 20 6.2
CNP20-50-267A 50 1116 53.7 20 6.2
CNP20-60-267A 60 1312 62.7 20 6.2
CNP20-70-267A 70 1514 71.6 20 6.2
