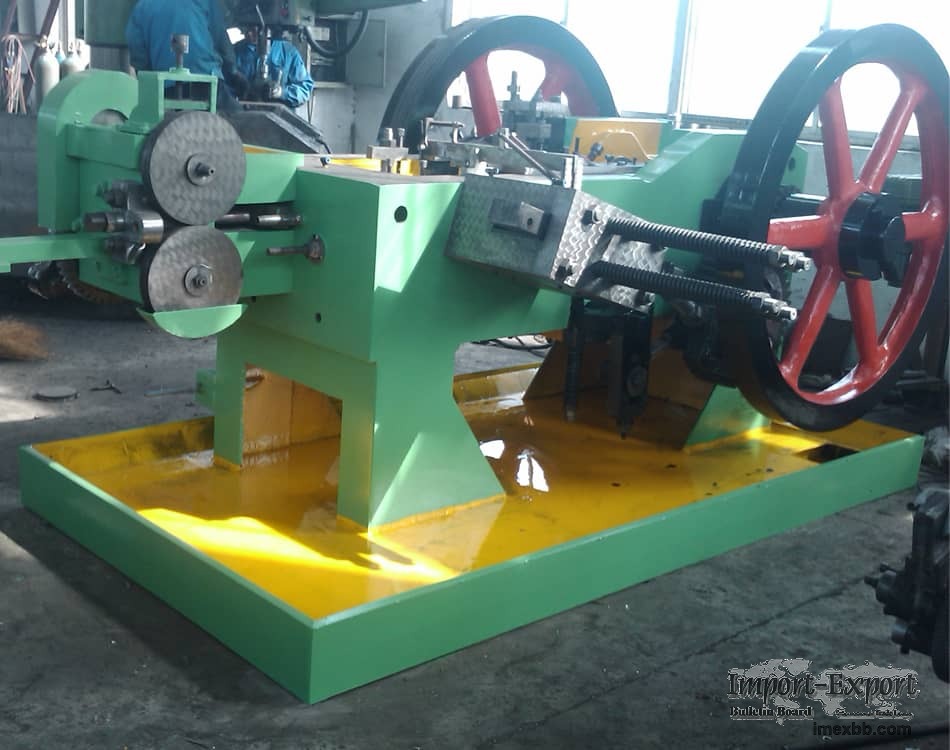

Cold Heading Machine

Cold Forging Header Machine
Metal tech cold forging header machine / bolt header machine, the function is
the first molding and the second punching products, which is mainly used for
forming the heads of the screw products, the work principle is line materials
calibration, accessing lines, sending materials to the main mold, first
punching initial forging, and second punching the formed blank materials and
withdraw. The work gets done without any letup, the production capacity can be
up to about 200 every minute, which belongs to the more advanced products in
the current technology.

Specifications of Cold Forging Header Machine
Model Maximum diameter
（mm） Maximum length
（mm） Ram Stroke
(mm) Output Rate
(pcs / per min) Main Mould
(mm) Cut-off Die
(mm) Punch
Die(mm) Cutter Size
(mm) Mechanical Dimensions
(mm) Main Motor
(kw) Net weight
(kg)
SJZ12-3 4 20 40 160-190 Φ20*36 Φ13*25 Φ18*50 6*25*42
1.4*0.75*0.9 1.1 624
SJZ12-4 5 40 60 140-170 Φ32*60 Φ15*30 Φ25*65/70
10*35*72 1.8*0.85*1.5 2.2 1274
SJZ12-5 7 60 90 110-140 Φ32*80 Φ20*35 Φ30*75 10*35*72
2.3*1.08*1.25 3 2080
80 110 90-110 Φ32*100 Φ20*35 Φ30*80
10*35*72 2.4*1.15*1.35 2145
100 130 80-100 Φ35*120 Φ20*35 Φ30*80
10*35*72 2.5*1.15*1.35 2210
150 190 80-100 Φ40*180 Φ20*35 Φ35*100
10*35*72 2.6*1.15*1.35 2990
SJZ12-6 9 90 120 80-100 Φ50*120 Φ24*40 Φ35*100
12*35*77 2.7*1.4*1.6 5.5 3380
120 150 70-90 Φ50*150 Φ24*40 Φ35*100
12*35*77 2.8*1.4*1.6 3640
150 190 60-70 Φ50*180 Φ24*40 Φ35*100
12*35*77 3.0*1.4*1.6 4160
170 230 50-60 Φ50*220 Φ24*55 Φ35*120
12*35*77 3.2*1.4*1.6 4360
200 250 40-50 Φ50*240 Φ24*55 Φ35*120
12*35*77 3.65*1.4*1.65 4940
250 290 30-45 Φ50*290 Φ24*60 Φ35*140
12*35*77 3.7*1.5*1.7 5460
SJZ12-8 11 120 160 60-80 Φ60*160 Φ28*45 Φ40*120
12*42*90 3.75*1.6*1.8 7.5 4940
150 190 60-70 Φ60*190 Φ28*45 Φ40*120
12*42*90 3.9*1.6*1.8 6240
200 250 40-50 Φ60*240 Φ28*60 Φ40*150
12*42*90 4.15*1.6*1.85 6500
250 290 30-45 Φ60*290 Φ28*60 Φ40*150
12*42*90 4.3*1.6*1.9 7800
SJZ12-10 13 120 160 50-60 Φ80*160 Φ35*50
Φ50*150 16*55*115 4.8*1.8*1.32 11 8450
180 230 50-60 Φ80*220 Φ35*50 Φ50*150
16*55*115 4.8*1.8*1.32 8650
220 270 40-50 Φ80*260 Φ35*50 Φ50*150
16*55*115 5.0*1.8*1.32 9100
SJZ12-12 15 150 190 40-50 Φ80*200 Φ45*60
Φ60*180 18*60*125 5.2*1.9*1.8 18.5 14040
200 250 30-40 Φ88*260 Φ45*60 Φ60*180
18*60*125 5.2*1.9*1.8 14300
280 330 30-40 Φ88*340 Φ45*60 Φ60*180
18*60*125 5.2*1.9*1.8 15600
300 350 25-35 Φ88*360 Φ45*60 Φ60*180
18*60*125 5.2*1.9*1.8 15860

Advantages of Cold Forging Header Machine
Metal tech Cold Heading Machine use high-quality material parts, strict quality
management all these guarantee superior quality and long performance Cold
Heading Machine life.

What technology do bolt header machine and screw heading machine applied?
Metal Tech's bolt header machine and screw heading machine applied the main
technology is as follows:
1. Straightening: the front of the machine is equipped with a straightening
mechanism, which can fully straighten the wire before forming, and also remove
the dirt on the wire surface
2. Cutting: cut the wire of appropriate length through the cutting mechanism
and send it to the forming mechanism
3. Forming: This is the main technology of the machine. Through two or more
molds, the wire rod is formed into the final product

As one of cold heading machine manufacturers, we also have types of weld mesh
manufacturing machine for sale, if you have needs, please contact us.

Now the price of wire drawing machine is affordable, if you have needs, please
leave us a message.

Minimum Order: 1000 kilograms
