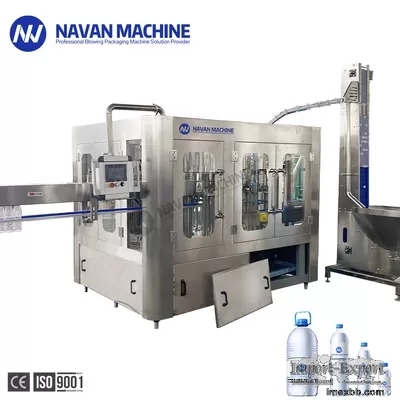

Complete 10000-12000BPH Automatic Water Bottle Filling Machine With Washing

Product Description
Complete Automatic Water Bottle Filling Machine With Washing Screwing 3 In 1
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is
innovated and designed in the requirement of still pure
water and mineral water, on the bases of introducing, digesting and absorbing
advanced technology from Germany and Italy.

Product Paramenters:

Model CGF24-24-8
Application Spring water / mineral water / pure water / non-gas wine drink and
so on
No. of Rinsing/Filling/Capping 24-24-8
Production Capacity(500ml) 10000-12000BPH
Filling precision ≤±5mm(liquid level)
User Ambient Conditions Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2500ml
Diameter φ=50-115mm
Bottle height H=150 ~350mm

Bottle type Plastic bottle / PET Bottle
Bottle neck/Cap Style Plastic Screw Cap φ=20-50mm
Machine material Food stage SS304 OR SS316
Air source pressure 0.5~0.6Mpa
Filling way/principle Gravity filling method
Control system SIMENS PLC+ TOUCH SCREEN
Features No Bottle No Filling No Bottle No Capping
Main Power 4.8kw
Power Supply Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm) 2780*2200*2200
Weight (kg) 4500
All machines could be customized , we could design and produce machines according
to your request.

Features :
This machine works harmoniously with air-conveyor belt, It holds the bottles by the
neck, thus, reducing the possibility of bottles falling over during conveying
process.
This machine is used to fill juice and noncarbonated drink into pet bottle and with
screw caps capping
function.
This machine integrated three function:
1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled
bottles



Rinser Station:

All 304 stainless steel rinser heads, water spray style inject design, more save
water consumption & more clean

304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing

304 stainless steel washing pumps

Complete 10000-12000BPH Automatic Water Bottle Filling Machine With Washing
Screwing 3 In 1 0
Filler station
High precision filling nozzle, PLC variable signal control, ensure high filling
precision & filling smoothly & steadily,
All 304 stainless steel contact parts &
liquid tank, fine polish, easy to clean
No bottle no filling
Complete 10000-12000BPH Automatic Water Bottle Filling Machine With Washing
Screwing 3 In 1 1
Capper Station

Place & capping system, electromagnetic capping heads, with burden discharge
function, make sure minimum bottle crash during capping

All 304stainless steel construction

No bottle no capping

Complete 10000-12000BPH Automatic Water Bottle Filling Machine With Washing
Screwing 3 In 1 2
Electric Part & Safe Device & Automation:

When accident system automatic stop & alarm
Emergency switch when accident
PLC , Touch-screen Control Panel & inverter
Food Grade 304 stainless steel rinsing pump, reliable & sanitary
Machine Base & Machine Construction:

304 stainless steel frame
Tempering Glass window, Clear & no odor
Excellent start wheel design, easy change over parts
Machine Base with anti-rust process, ensure the forever antirust
All seal where liquid may Leakage & base neck come with rubber, water proof
Manual lubrication system
