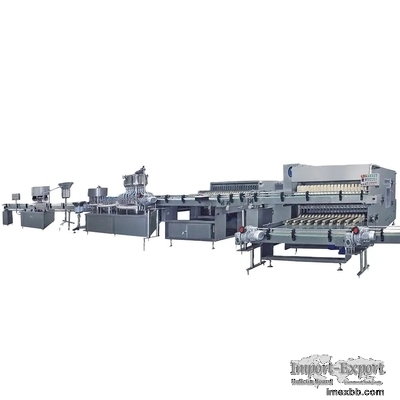

Complete Fully Automatic Fresh Fruit Juice Filling Machine Capping Machiner

Product Description
Complete Fully Automatic Fresh Fruit Juice Filling Machine Filling Machinery
Sealing Treament


Main Structure:
1. Rinsing system: Combined with rotary tray with clamp, water distributing
tray, water tank and rinsing pump.
2. Filling machine: Combined with hydraulic, filling valve, controlling ring,
and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and
neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC
controlled and touch screen operated.



Item Techinical Parameter(Automated Filling Machine)
Model WD50/150-120 WD50/500-200 WD50/500-300 WD50/500-600
Applied Bottle Size 50ML,100ML,250ML,500ML
Production Capacity 80-120 Bottle/min 120-200 Bottle/min 200-300
Bottle/min 300-600 Bottle/min
Power 35KW 37KW 45KW 55KW
Compressed Air Consumption 4m³/h(.06MPa) 5m³/h(.06MPa) 6m³/h(.06MPa)
7m³/h(.06MPa)
Water Consumption
Tap water:200ml/bottle Purified water:80ml/bottle
Injection water:120ml/bottle 0.2MPa

Overall Size
17800*6000*2300mm


19000*6000*2300mm


24000*7000*2300mm
24000*7000*2300mm




Complete Fully Automatic Fresh Fruit Juice Filling Machine Capping Machinery
Sealing treament 0
Washing Part
1. Into bottle way is air conveyor direct connection with Bottle dial .
2. All 304/316 stainless steel rinse heads, water spray style inject design,
more save water consumption and more clean .
3. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle
crash during washing
4. 304/316 stainless steel washing pump make the machine more durable .

Complete Fully Automatic Fresh Fruit Juice Filling Machine Capping Machinery
Sealing treament 1
Filling Part
1. During filling juice ,we will make a cover installed on the filling valve,
avoiding the fruit pulp return inside reflux pipe to block the pipe.
2. Filling valve and bottle lifter uses adopts German Igus bearings which are
corrosion-resistant and maintenance-free.
3. By install CIP cleaning cups, the filling machine can realize online CIP
cleaning 4.During filling process, there is no reflux of product, avoiding
blockage of product.
Complete Fully Automatic Fresh Fruit Juice Filling Machine Capping Machinery
Sealing treament 2
Capping Part
1. Place and capping system, electromagnetic capping heads, with burden
discharge function, make sure minimum bottle crash during capping.
2. All 304/316 stainless steel construction
3. No bottle no capping
4. Automatic stop when lack of bottle
5. Capping effect is stable and reliable, Defective rate ≤0.2%

FAQ
1. Can you guarantee your quality if we order on you ?
Of course.Best quality is our principle all the time.You can be assured on our
production.
2.What should I do if we are not able to operatethe the machine when we receive
it?
Operation manual guides you the installation.Besides, we haveprofessional
after-sale groupto customer 's site to solve any problems.weprovide 7*24 hours
on-line technical support.
3.How could I get the spares on machines?
We will send extra sets of easy broken spares andaccessories likeo ring
etc.Non-artificial damagedspares will be sent freelyduring 1 year 's warranty.
4.Can this machine fill paste or cream ?
The spout pouch filling machine can fill any liquidas juice,beverage,soy
milk,cocktail and variouscondiments like tomato sauce,bean sauce etc.
5.How to maintain such a machine ?
Please clean every part after filling thus can givelong using life of machine
and make a carefullyclean 3 times a year.
