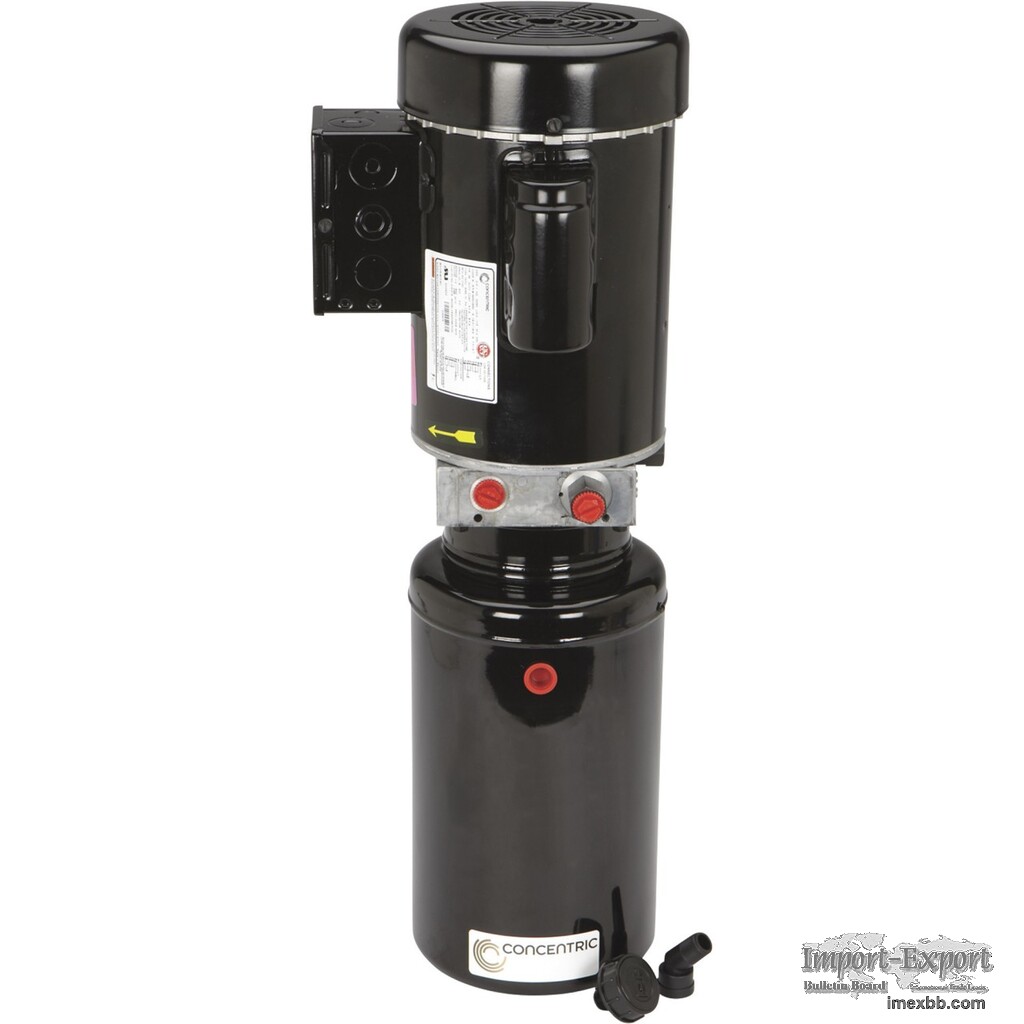

Concentric 1 HP 115/208-230 Volt AC Hydraulic Power Unit Basic

Mounts vertically or horizontally. 60 Hz TEFC motor turns at 3450 RPM. .097 displacement pump and 1.5 gallon reservoir. Relief valve set at 2000 PSI. 1.25 GPM with check valve to prevent back flow.
What's Included

(1) Hydraulic power unit

Features + Benefits

Power Unit: Basic (no valving)

Key Specs
Item# 105871
Brand Haldex
Manufacturer's Warranty 1 year Limited Warranty
Ship Weight 55.0 lbs
Displacement (cc) 1.59
Displacement (cu. in.) 0.097
Flow (GPM) 1 1/4
Reservoir Capacity 1 1/2 gal.
Inlet Port (in.) 9/16-18 SAE
Outlet Port (in.) 9/16-18 SAE
Max. PSI 3,000
Volts 115, 208, 230
Max. RPM 3450
Phase Single
