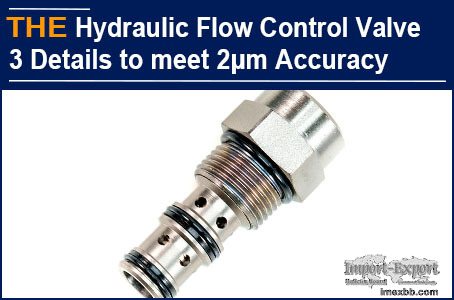

For hydraulic cartridge flow control valve with 2μm accuracy, hydraulic car

Last week, Akjoor from Türkiye left a message on the website of the hydraulic
cartridge valve manufacturer AAK: I need the lead time of producing a standard
hydraulic cartridge flow control valve, but the precision of the valve cage
must be controlled within 2μm. After communication, we learned that Akjoor
purchased 360 pcs of hydraulic cartridge flow control valves from another
hydraulic cartridge valve manufacturer. Except for the unstable valve cage
accuracy, all other functions meet the requirements of their engineers.

This hydraulic cartridge flow control valve is actually not difficult, with a
valve cage accuracy of within 2μm is an additional requirement of Akjoor. Most
hydraulic cartridge valve manufacturers are only able to copy standard parts.
If there are additional requirements, stability can be a problem.

I sent Akjoor a video of hydraulic cartridge valve manufacturer AAK produced
hydraulic cartridge flow control valve cages last time, showing how AAK
controlled the accuracy of the valve cages in 3 steps. The machining of AAK
hydraulic threaded cartridge valve cage is carried out using Jidou fully
automatic lathe, which is suitable for machining parts with precision
requirements. After one clamping, the machining of the valve cage is completed
in one go.

1. After the valve cage clamp is completed, check the positioning to ensure
that the clamp is fixed without deviation, then close the safety door and start
processing.

2. After the valve cage is processed, the technician takes out the valve cage
and uses an air gun to remove debris from the valve cage and fixture.

3. Use a plug gauge to check the machining size of the valve cage.

Today, we received the test order from Akjoor, but need to start production
after CNY, because our workshop has already been closed due to CNY holiday.

AAK hydraulic cartridge flow control valve, 3 details, no problem to meet 2μm
accuracy.
