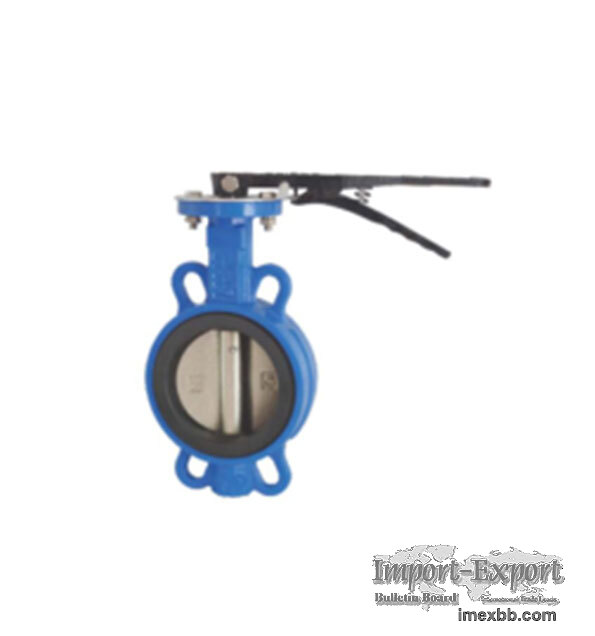

Concentric Butterfly Valve

In the well-known butterfly valve technology, its sealing form mostly adopts a
sealing structure, and the sealing material is rubber, polytetrafluoroethylene,
etc. Due to the limitation of structural characteristics, it is not suitable
for industries such as high-temperature resistance, high-pressure resistance,
corrosion resistance, and wear resistance. An existing more advanced reliable
concentric butterfly valve is a triple eccentric metal hard-sealed butterfly
valve, the valve body and the valve seat are connected components, and the
sealing surface layer of the valve seat is welded with temperature-resistant
and corrosion-resistant alloy materials. The multi-layer soft laminated sealing
ring is fixed on the butterfly valve concentric plate. Compared with the
traditional butterfly valve, our concentric butterfly valve for sale has high-
temperature resistance, is easy to operate, and has no friction when opening
and closing. When closing, the torque of the transmission mechanism increases
to compensate for the sealing, which improves the concentric flanged butterfly
valve. The advantages of sealing performance and extended service life. UTOMST,
as one of concentric butterfly valve suppliers, has its own concentric
butterfly valve factory. Contact us to get the latest concentric butterfly
valve price.

Concentric Butterfly Valve Technical Specification
Size: 2"~60"(DN50~DN1500) larger sizes upon request

Pressure: Class ANSI #150, PN10, PN16

Concentric butterfly valve body material: Carbon steel, cast iron, ductile iron

Standard compliance: ISO5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME
B16.5, DIN3202

End connections: Flanged Ends OR WAFER, LUG

Operation: manual, pneumatic, electric, or others

Seals: NBR, EPDM, VITON, etc.

Concentric Butterfly Valve Datas
Main Performance Specification & Materials of Concentric Butterfly Valve Main
Parts
Main Connection Dimensions of Concentric Butterfly Valve

Main performance specification
DN(mm) Nominal diameter 50(2")~1000(40") 50(2")~800(32")
PN(MPa) 1 1.6
Nominal pressure
(MPa) Test capability Housing 1.5 2.4
Seal up 1.1 1.76
Applicable temperature(°C) -165
Applicable medium Freshwater, sewage, seawater, air, steam, food, drugs,
all kinds of oils, acids, bases, salts, etc.

Materials of main parts
Part name Material name
Valve body Gray iron, ductile iron, stainless steel
Valve plate Ductile iron, stainless steel, and aluminum alloy
Valve shaft Carbon steel and stainless steel
Valve seat Rubber
Seal up O type ring

As a professional valve factory, we have types of valves for sale, if you have
needs, please contact us.

Minimum Order: 1 pieces
