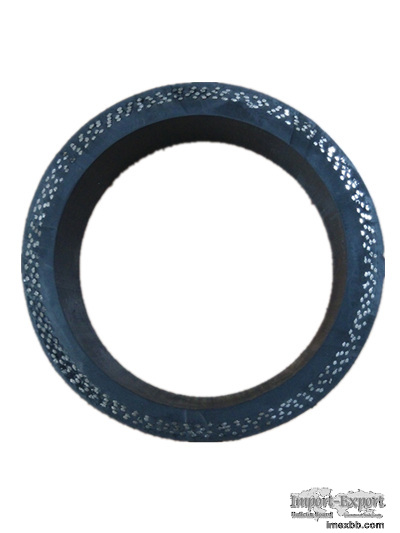

Concrete Pump Rubber End Hose

Concrete Pump Rubber End Hose

Product Overview:
The Concrete Pump Rubber End Hose is specifically designed for use with
concrete pumping equipment, offering superior flexibility, high pressure
resistance, and durability. Reinforced with multiple layers of high-tensile
steel wire, these hoses are suitable for demanding construction environments,
ensuring safe and reliable concrete delivery.

Technical Parameters

Size InnerDiameter(ID) OuterDiameter(OD) Reinforcement
WorkingPressure BurstPressure Weight
3″ 76 mm 91 mm 2 ply steel wire 1200 psi 3000 psi
4.8 kg/m
4″ 102 mm 126 mm 2 ply steel wire 1200 psi 3000 psi
5.5 kg/m
4″ 102 mm 126 mm 4 ply steel wire 1200 psi 3000 psi
5 kg/m
5″ 127 mm 145 mm 2 ply steel wire 1200 psi 3000 psi
11 kg/m
5″ 127 mm 153 mm 4 ply steel wire 1200 psi 3000 psi
10.5 kg/m
Key Features:

Available in 3″, 4″, and 5″ sizes
Reinforced with 2 or 4 ply high-tensile steel wire for maximum strength
High working pressure up to 1200 psi, burst pressure up to 3000 psi
Durable and flexible for efficient concrete delivery
Suitable for a wide range of concrete pumping applications
Applications:
Ideal for use on construction sites with concrete pumps, ensuring safe,
flexible, and reliable delivery of concrete to the point of placement.

Product Keywords – Concrete Pump Rubber Hose：

Concrete pump rubber hose
Concrete rubber pipe
Cement pipe
Pump pipe
Rubber hose
Concrete rubber hose
Concrete delivery hose
Cement rubber hose
DN125 rubber hose
5″ concrete rubber hose
4-ply concrete hose
