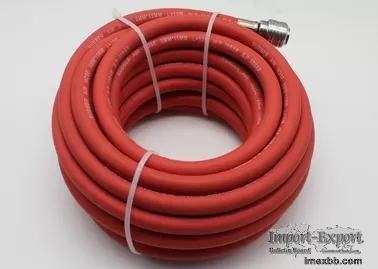

ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick Release C

ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick Release
Connectors



Exported to: British, Portugal, etc.



Hose Structure: Tube: NR& SBR synthetic rubber.



Reinforcement: High tensile polyester fiber braided.



Cover: NR & SBR or SBR& EPDM synthetic rubber.



Temperature resistance Range: -30℃ - +70℃



Color Choice: Red, Yellow, Black etc.



Hose Application: Mainly used for conveying of air for air compressor machine.



Length: 10m, 20m, etc



Specification of hose:

Item code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Weight

inch

mm

mm

bar

psi

ba , r

psi

m/pc

kg/pc

HPR1　

1/4"

6

12

20

300

60

900

10

1.7

HPR2　

1/4 , "

6

12

20

300
,
60

900

20

3.3

HPR3　

5/1 , 6"

8

15

20

300

60

900

10

2.1

HPR , 4　

5/16"

8

15

2 , 0

300

60

900

20

4.1

HPR5　　

3/8"

10< , br>
17

20

300

60

90 , 0

10

2.5

HPR6　

3/8&q , uot;

10

17

20

300
< , br>60

900

20

4.9



Specification of fittings:

German or Universal 3 in 1 quick coupler and plug.

ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick Release
Connectors 0ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick
Release Connectors 1



Competitive Advantage of PASSION Hose:

PASSION® Rubber air hose assembly, is popular in Europe market, made of non-
recycled rubber, according to ISO-2398 standard.

Hangzhou Paishun can crimp the specified fittings and quick released coupling
on the rubber air hose.

If you have some special request of size, Hangzhou Paishun can also customize
for you.
