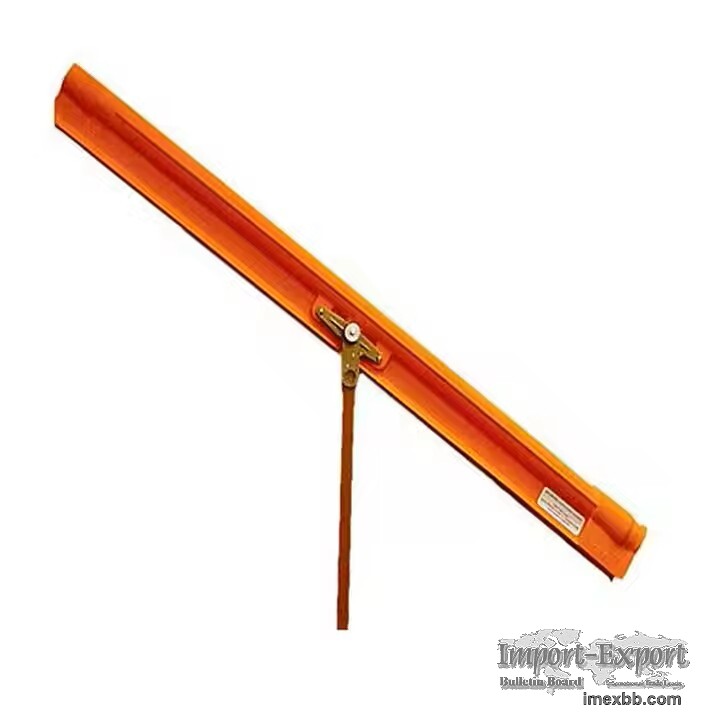

Conductor Shield

The conductor shielding cover is made of high density crosslinked polyethylene
material, and is mainly used for shielding wire of distribution line. The tensile
strength is not more than 11 mpa, and the mechanical piercing force is not more than
30 N, you can wear insulating rubber gloves or use a lever to operate.
Conductor Shield (with adapter)
Code Max. applied Class Size （mm) Weight （kg)
voltage
（kV)
714001 26.4Φ-Φ ASTM F712 class 3 51 x 1500 1.8
714005 36.6Φ-Φ ASTM F712 class4 51 x 1500 1.8
Conductor Shield (without adapter)
Code Max. applied Class Size （mm) Weight （kg)
voltage
（kV)
714002 26.4Φ-Φ ASTM F712 class 3 51 x 1500 1.4
714004 36.6Φ-Φ ASTM F712 class4 51 x 1500 1.4
The adapter consists of 2 screws, 1 bracket, 1 adapter, 1 butterfly nut and 1 bolt.
The adapter consists of 2 screws, 1 bracket, 1 adapter, 1
butterfly nut and 1 bolt.The adapter consists of 2 screws, 1
bracket, 1 adapter, 1 butterfly nut and 1 bolt.
Code Weight KG
714003 0.4

Minimum Order: 1 sets
