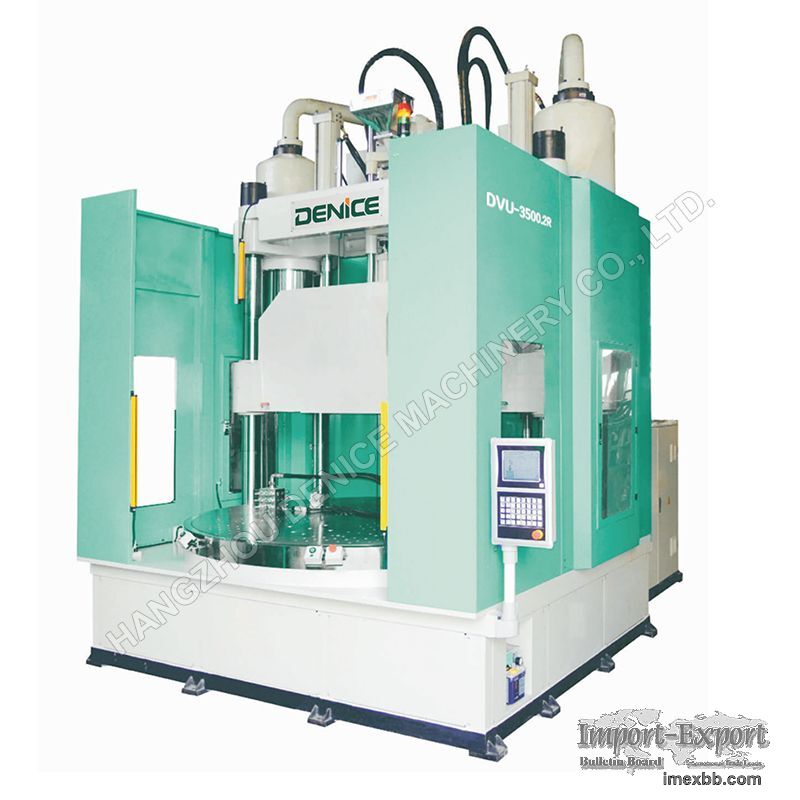

cooker handle making machine DVU-3500.2R.2C

cooker handle making machine DVU-3500.2R.2C
DVU-3500.2R.2C
lower height of the working table design，Multi station rotary table machine,
facilitates the operation of staff，two injection units two palstic material
effectively reduces the height of the working table and the whole height of the
vertical injection molding machine, facilitates the operation of staff, the
replacement of convenient molds, and improves production efficiency and saves
space.
DENICE cooker handle making machine Specification

   Model   Unit DVU-3000 DVU-3500 DVU-4500
Injection   Unit Screw diameter mm Ф50 Ф55 Ф60 Ф50
Ф55 Ф60 Ф55 Ф60 Ф65
Maximum injection pressure Kg/cm2 2150 1777 1493 2150
1777 1493 2083 1750 1491
Theoretical shot volume cm3 491 594 707 491 594
707 618 735 863
Maximum shot weight（PS） g/Oz 454（16） 549（19.4）
653（23） 454（16） 549（19.4） 653（23） 571（20.1）
679（24） 797（28.1）
Injection rate cm3/sec 196 237 282 220 267 317
258 307 361
Clamping        Unit Clamping force ton 300 350
450
Mold Size mm 1100×850 1100×850 1300×1050
Minimum mold thickness mm 400 450 450
Opening stroke mm 450 450 450
Open daylight mm 850 900 900
Ejector force T 8 8 8
Ejector stroke mm 150 150 150
Others Pump motor power Kw 30 37 30+37
Hydraulic system pressure Kg/cm2 140 140 140
Barrel heating power Kw 16.8 16.8 19.55
Total wattage Kw 46.8 53.8 86.55
Oiltank   capacity L 1000 1100 1400
Machine weight (approx.)     T 18 25 30
Machine dimensions(approx.) m 3.5×2.1×4.5 3.5×2.1× 4.7
4.0×2.5× 4.9
