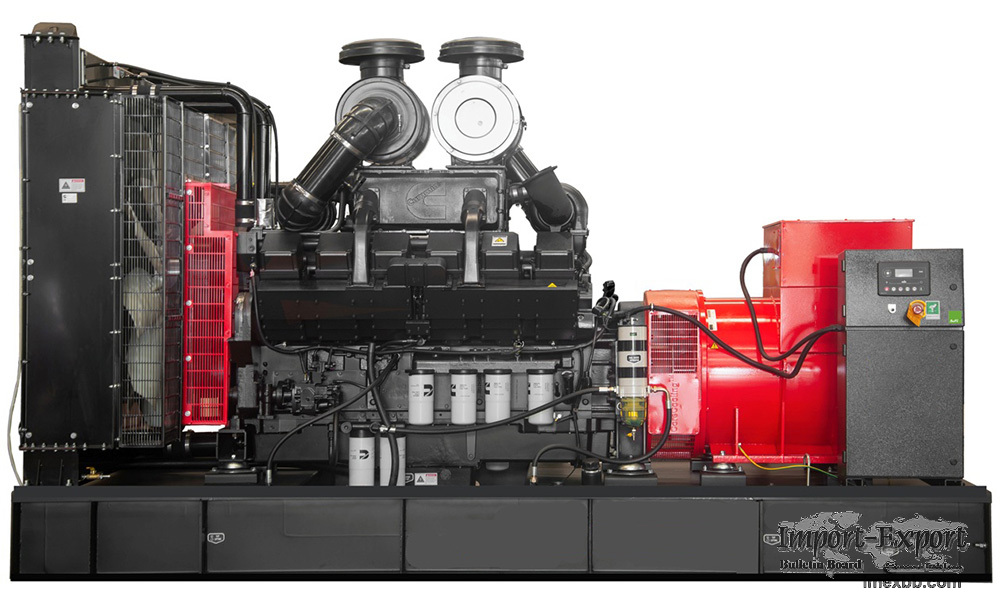

Cummins 1000kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C1100
Prime Power: 1000 kVA
Standby Power: 1100 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 4250×1800×2250 mm
Weight: 7430 kg

Engine Specification
Manufacturer / Model CCEC Cummins KTA38-G5
Air intake system Turbo, Air/Water cooling
Fuel system PT type fuel pump, EFC
Cylinder arrangement 12 in “V”
Displacement 37.8L
Bore and stroke 159*159（mm）
Compression ratio 13.9:1
Rated speed 1500rpm
Max. Standby power at rated speed 970KW/1319HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 202 g/kWh 205 L/h
Fuel consumption @ 75% (Prime Power) Load 207 g/kWh 158 L/h

Alternator Specification (Stamford S6L1D-E4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
