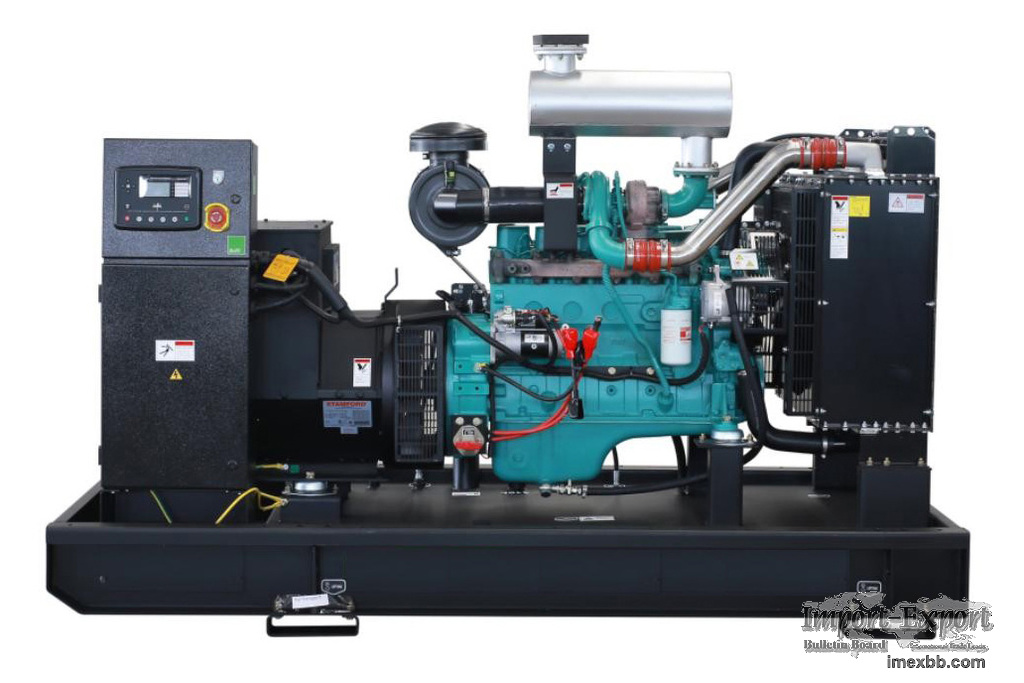

Cummins 130kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C142
Prime Power: 130 kVA
Standby Power: 142 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 2400×900×1700 mm
Weight: 1360 kg

Engine Specification
Manufacturer / Model DCEC Cummins 6BTAA5.9-G2
Air intake system Turbo, Air/Air Cooling
Fuel system PB type fuel pump
Cylinder arrangement 6 in line
Displacement 5.9L
Bore and stroke 102*120（mm）
Compression ratio 17.3:1
Rated speed 1500rpm
Max. Standby power at rated speed 130KW/174HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 208 g/kWh 28.9 L/h
Fuel consumption @ 75% (Prime Power) Load 207 g/kWh 21.7 L/h
Fuel consumption @ 50% (Prime Power) Load 214 g/kWh 15.3 L/h

Alternator Specification (Stamford UCI274E1)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
