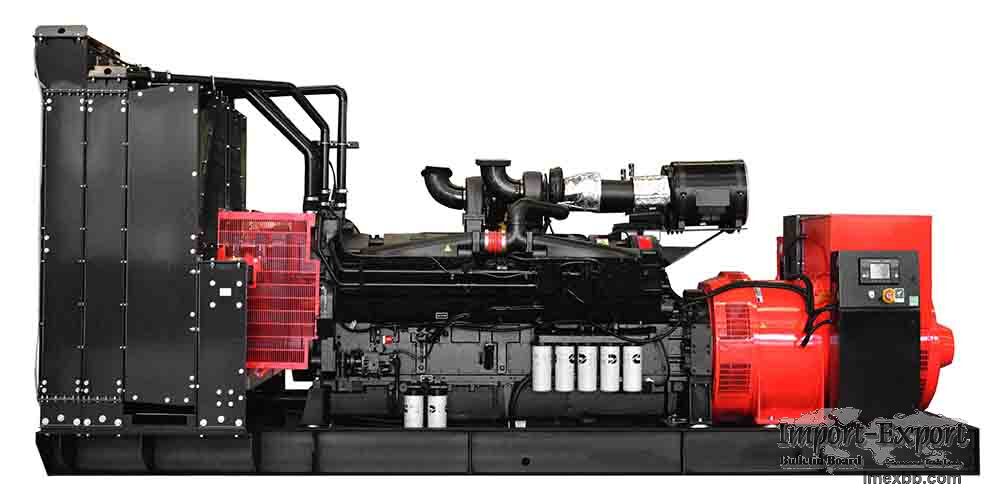

Cummins 1500kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C1650
Prime Power: 1500 kVA
Standby Power: 1650 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 5550×2150×2550 mm
Weight: 11000 kg

Engine Specification
Manufacturer / Model CCEC Cummins KTA50-GS8
Air intake system Turbo, Air/Water cooling
Fuel system PT type fuel pump, EFC
Cylinder arrangement 16 in “V”
Displacement 50.3L
Bore and stroke 159*159（mm）
Compression ratio 14.9:1
Rated speed 1500rpm
Max. Standby power at rated speed 1429KW/1944HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 204 g/kWh 313 L/h
Fuel consumption @ 75% (Prime Power) Load 210 g/kWh 243 L/h
Fuel consumption @ 50% (Prime Power) Load 221 g/kWh 175 L/h

Alternator Specification (Stamford S7L1D-C4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
