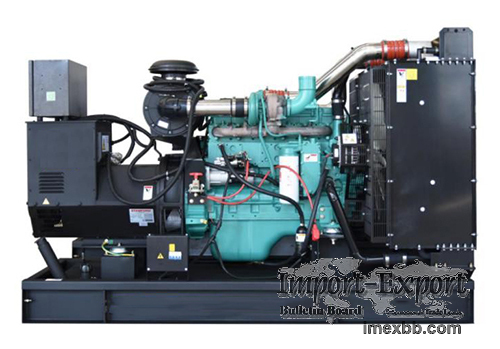

Cummins 250kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C275D
Prime Power: 250 kVA
Standby Power: 275 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 2610×1000×1850 mm
Weight: 2060 kg

Engine Specification
Manufacturer / Model DCEC Cummins 6LTAA8.9-G2
Air intake system Turbo, Air/Air Cooling
Fuel system P7100 type fuel pump
Cylinder arrangement 6 in line
Displacement 8.9L
Bore and stroke 114*145（mm）
Compression ratio 16.6:1
Rated speed 1500rpm
Max. Standby power at rated speed 240KW/322HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 197 g/kWh 52L/h
Fuel consumption @ 75% (Prime Power) Load 197 g/kWh 39L/h
Fuel consumption @ 50% (Prime Power) Load 201 g/kWh 27L/h

Alternator Specification (Stamford UCDI274K1)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
