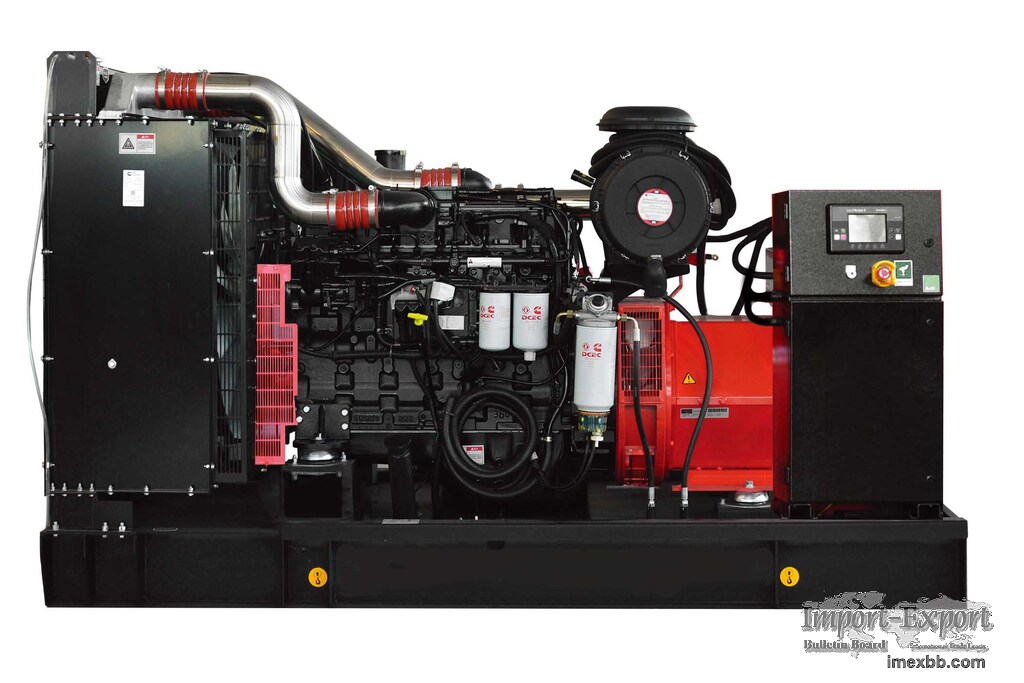

Cummins 500kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-C550
Prime Power: 500 kVA
Standby Power: 550 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 3450×1400×2100 mm
Weight: 4040 kg

Engine Specification
Manufacturer / Model CCEC Cummins KTA19-G3A
Air intake system Turbo, Water/Air cooling
Fuel system PT type fuel pump, EFC
Cylinder arrangement 6 in line
Displacement 18.9L
Bore and stroke 159*159（mm）
Compression ratio 13.9:1
Rated speed 1500rpm
Max. Standby power at rated speed 504KW/675HP
Governor type Electronic
Fuel consumption @ 100% (Prime Power) Load 203 g/kWh 104.7 L/h
Fuel consumption @ 75% (Prime Power) Load 207 g/kWh 80.0 L/h

Alternator Specification (Stamford S5L1D-C4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
