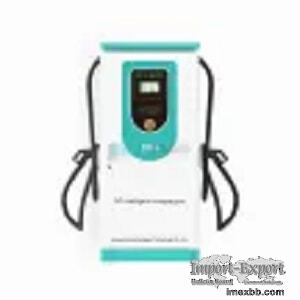

Customized EV Charging Pile

Product Description
At Ruihua, we understand that every charging need is unique. Our Customized EV
Charging Pile exemplifies our dedication to providing tailor-made solutions for
electric vehicle charging. As experienced EV charging station manufacturers, we
combine expertise with innovation to deliver a charging station that seamlessly
integrates into your environment.

Smart Ev Solutions
Ruihua Intelligent AC charging pile and DC charging pile is characterized with
high stability, good performanc and CE certified. AC charging pile is
specially charging for a power supply device which is fixed and installed in
the roadside parking lot and other places in the service area. DC charging
pile (or non-vehicle-mounted charger) directly outputs direct current to
charge the vehicle-mounted battery.Our power includes 30kW,60kW, 80kW,120kW,
150kW,160kW,180kW,240kW,280kW,320kW,360kW,600k , W and the charging speed is fast.

Customized EV Charging Pile Details:
Multi-standard: CCS1, CCS2
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )

Power Specification
Input Connection 3-Phase : 3P+N+PE
Input Voltage 400V/AC ±15%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc - 1000Vdc
Max. Output Current 200A（ 250A optional）
Rated Power 120kW - 240kW
User Interface & Control
LCD Display 7" Color Touch Screen
LED Indicator Green/Yellow/Red
Charging Interface CCS2 Plug( CCS1 Plug / CHAdeMO optional )
Number of Charging Interface 2
Energy Measuring Embedded meter, with 1% accuracy
Communication
Backend Ethernet( Bluetooth / Wi-Fi/ 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 JSON ( OCPP2.0.1 )
Protection
Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection,
Short Circuit Protec-
tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,
Surge Protection
Environmental
Operating Temperature -30℃—+55℃
Storage Temperature -40℃—+75℃
Operating Humidity Max. 90% RH, Non-Condensing
Operating Altitude ≤ 2000m
IP, IK Level IP65, IK10
Cooling Method Independent air duct
Mechanical
Product Dimension 1780*800*950 mm (H*W*D)
Charging Cable Length 5m
Weight 60kw: 390kg;  120kw: 420kg;
Mounting Free Standing
Certifications
Certifificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24
Safety CE
EMC Class B

Why Choose Ruihua's Customized EV Charging Pile:

♦Advanced Technology: Our DC EV Charging Station incorporates cutting-edge
technology to ensure efficient and reliable charging for all electric vehicles.
♦Flexibility and Customization: As vehicle charging station manufacturers, we
recognize the importance of adapting to diverse requirements. Our charging pile
can be customized to suit your specific branding and functional preferences.
♦Reliability: As trusted manufacturers of charging stations, we prioritize
reliability. Our charging pile is built to withstand various environmental
conditions while consistently delivering optimal performance.
♦Seamless Integration: Whether you're an urban planner, a commercial property
owner, or a fleet manager, our Customized EV Charging Pile seamlessly
integrates into various settings, offering a convenient and user-friendly
charging experience.
♦Industry Expertise: With a proven track record as electric charging station
manufacturers, we bring industry expertise to every product we offer. Our
solutions are designed to meet the evolving demands of the electric vehicle
market.

Ruihua stands as a distinguished name among EV charging station manufacturers,
and our Customized EV Charging Pile exemplifies our commitment to innovation,
sustainability, and customer satisfaction. As vehicle charging station
manufacturers, we empower you to play an active role in shaping the electric
future by providing reliable and adaptable charging solutions.
