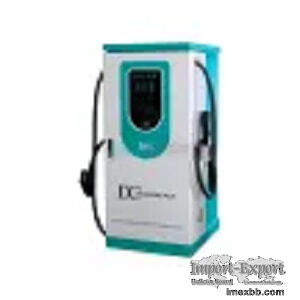

EV Charging Pile

Product Description
With the developing of technology, the pollution and consumption of electric
vehicles is much lower than gasoline vehicles, makes it widely welcomed by the
government and individuals. Electric cars are the key point when moving towards
a sustainable transport future. However, it’s not simple to reach this future
as electric cars must become as convenient as the regular ones. It needs more
convenient charging processes, more convenient operation processes, and easier
way to find the charging stations, etc. With rich experience in the electric
vehicle industry. Ruihua has made an in-depth market investigation, and
provide solutions with function such as 4G/WLAN networking, remote control, VPN
data encryption. Ruihua contributes to the promotion of a Green Earth.

Unlock the future of transportation with Ruihua state-of-the-art EV Charging
Pile. Designed to meet the growing demands of electric vehicle owners, our
charging pile combines cutting-edge technology with user-friendly features to
make EV charging accessible, efficient, and sustainable.
Ruihua High Power DC Fast Charger with CE certificate.
Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000
square meters for production base and over 400 workers.

EV Charging Pile Details:
Multi-standard: CCS1, CCS2
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )

Power Specification
Input Connection 3-Phase : 3P+N+PE
Input Voltage 400V/AC ±15%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc - 1000Vdc
Max. Output Current 200A（ 250A optional）
Rated Power 120kW - 240kW
User Interface & Control
LCD Display 7" Color Touch Screen
LED Indicator Green/Yellow/Red
Charging Interface CCS2 Plug( CCS1 Plug / CHAdeMO optional )
Number of Charging Interface 2
Energy Measuring Embedded meter, with 1% accuracy
Communication
Backend Ethernet( Bluetooth / Wi-Fi/ 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 JSON ( OCPP2.0.1 )
Protection
Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection,
Short Circuit Protec-
tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,
Surge Protection
Environmental
Operating Temperature -30℃—+55℃
Storage Temperature -40℃—+75℃
Operating Humidity Max. 90% RH, Non-Condensing
Operating Altitude ≤ 2000m
IP, IK Level IP65, IK10
Cooling Method Independent air duct
Mechanical
Product Dimension 1780*800*950 mm (H*W*D)
Charging Cable Length 5m
Weight 60kw: 390kg;  120kw: 420kg;
Mounting Free Standing
Certifications
Certifificate IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24
Safety CE
EMC Class B

Request a free quote today!

Key Features of EV Charging Pile:
♦ Our EV Charging Pile supports both Level 2 (AC) and Level 3 (DC) charging,
delivering rapid charging speeds to get you back on the road quickly. Say
goodbye to long waiting times.
♦ Whether you drive a Tesla, Nissan Leaf, Chevrolet Bolt, or any other
electric vehicle, our charging pile is compatible with a wide range of EV
models, ensuring you can charge your vehicle hassle-free.
♦ Charging your EV has never been easier. Our intuitive touchscreen interface
guides you through the charging process effortlessly. It even displays real-
time charging data, so you can track your progress.
♦ Safety is our priority. Our charging pile features secure access controls,
including RFID card compatibility and mobile app integration. You'll have peace
of mind knowing your vehicle is protected during charging.
♦ Built to withstand the elements, our charging pile is robust and
weatherproof. Rain or shine, you can count on it to perform reliably.
♦ We believe in sustainable charging. Our charging pile includes advanced
energy management features such as load balancing and peak demand management,
helping you optimize your energy usage and reduce costs.
♦ Stay in control from anywhere. Our charging pile offers remote monitoring
and diagnostics, allowing you to check the status of your charging session and
receive alerts if any issues arise.
♦ Whether it's for your business, public charging station, or home, our
charging pile can be customized with your branding, creating a unique and
memorable impression.
