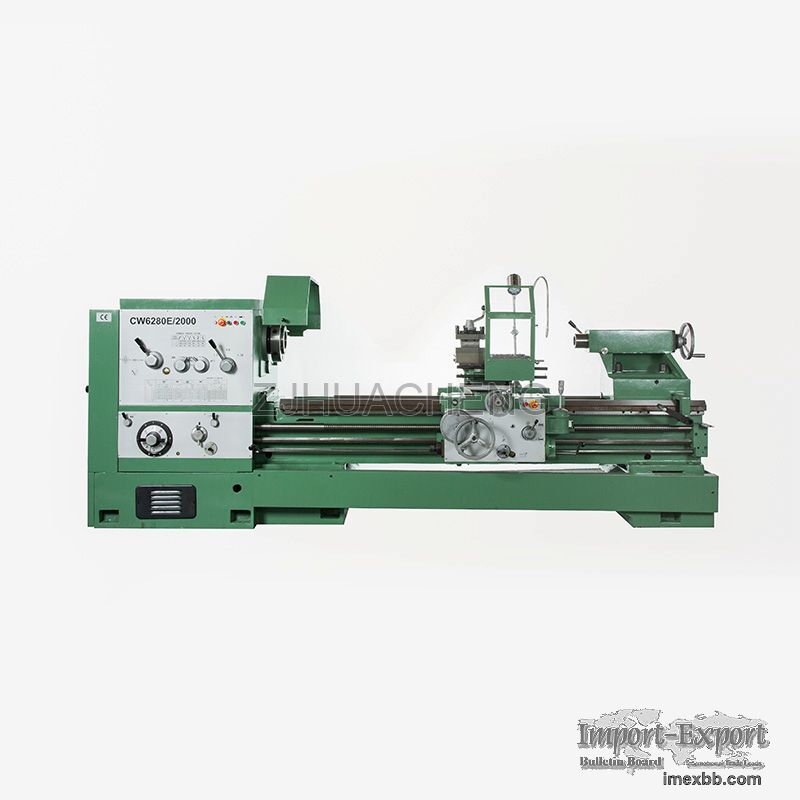

CW-E Unniversal Lathe

CW-E Unniversal Lathe
CW-E series machine is the universal lathe, suitable for high speed steel and
hard alloy steel cutting tools
More information you can click here
MODEL CW61(2)63E CW61(2)80E CW61(2)100E CW61(2)120E
CAPACITIES
Max.swing over bed 630mm 800mm 1000mm 1200mm
Max.swing over cross slide 350mm 485mm 685mm 800mm
Center distance 1000 1500 2000 3000 4000 5000 6000 8000 10000mm
Max.swing over gap 830mm 1000mm 1200mm 1400mm
Valid length of gap 300m
Bed width 550mm
Max weight of workpiece 3T
HEAD-STOCK
Spindle hole 105mm OR 130mm  (OPTIONAL FOR CW6180E+)
Spindle nose D-11
Spindle taper 1:20
Spindle speeds(Number) 14-750RPM(18 STEPS)
GEAR BOX-THREADS & FEEDS
Metric threads range(kinds) 1-240mm(54 kinds)
Inch threads rangs(Kinds) 28-1 inch(36 kinds)
Moudle threads range(kinds) 0.5-60 DP(27 kinds)
Diametral threads range(kinds) 30-1 t.p.i.(27 kinds)
Longtudinal feeds range(kinds) 0.048-24.3mm/r (72 kinds)
Cross feed range(kinds) 0.024-12.15mm/r (72 kinds)
Rapid feed:Long./Cross 4/2m/min
Leadscrew size:Diameter/Pitch T48mm/12mm OR T55mm/12mm(optional for 5M+)
CARRIAGE
Cross slide travel 350mm 420mm 520mm 620mm
Compound rest travel 200mm
Size of tool shank 32*32mm
TAILSTOCK
Spindle diameter 100mm 120mm
Spindle taper MORSE  #6
Spindle travel 240mm
MOTOR
Main drive motor 11kw
Coolant pump motor 0.09kw
Rapid feed motor 1.1kw
Center distance: NET  WEIGHT
1500mm 4500kg 4800kg 5000kg 5500kg
2000mm 4800kg 5100kg 5300kg 5800kg
3000mm 5800kg 6100kg 6300kg 6800kg
Center distance WEIGHT FLOOR SPACE(L*W*H)
1500mm 3452*1326*1790 mm
2000mm 3952*1326*1790 mm
3000mm 4452*1326*1790 mm

Huasheng-Light-duty Universal Lathe is the universal lathe, suitable for high
speed steel and hard alloy steel cutting tools
Suitable for high-speed steel and hard alloy steel cutting tools to process
different materials of shaft parts, cylindrical and disk parts in turning outer
circle, end face, grooving, cutting, boring, turning and boring inner cone,
various threads and other processes.
Machine casting has strong rigidity;
The cross slide, tool rest and bed saddle can move quickly;
1-4M lathe machine is the split-type Lathe and 5M + is integral type;

Minimum Order: 1 sets
