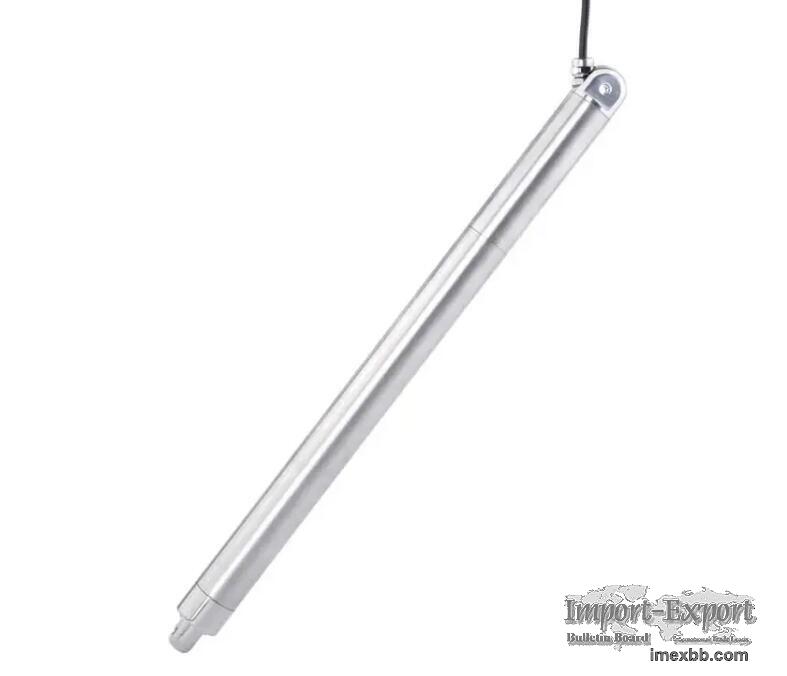

DDTG-26 Micro Tubular Linear Actuator

DDTG-26 Micro Tubular Linear Actuators
The DDTG-26 Micro Tubular Linear Actuator is a compact and efficient
actuator designed for precise linear motion applications. With a small form
factor and a tubular design, it is ideal for applications where space is
limited. The actuator offers high speed and accuracy, making it suitable for
various industries such as robotics, medical equipment, and automation.

Technical Data of DDTG-26 Micro Linear Servo Actuator
Model DDTG-26
Input Voltage 12V or 24 or 36V or 48V
material of outer tube AL 6063/stainless steels 304
material of lead screw stainless steels 304
material of piston rod stainless steels 304
material of the nut DuPont POM, USA
Stroke Length 50～200mm
Motor Type brushed motor
Max Load 500N
Self-locking Force 600N
No-load Speed 5-15mm/s
Load Speed 3.8-11mm/s
Limit Switch built-in
Duty Cycle under max load,work for 50 times , stop for 20minutes
（15%-20%）;under min load can work continuously
Protection Class IP67
Operating temperature -20-60ºC
Wire length Custom
Noise on load ≤60db

Dimension of DDTG-26 Micro Tubular Linear Actuator
DDTG-26 (mm) Standard Hall Sensor
Min. install dimension L+S 155+S 170+S

DDTG-26 Micro Tubular Linear Actuator Customizable Options
Wire length

Stroke length

Install dimension

Material of outer tube（6063AL or SUS304）

Color

Bracket

Contr , ol box
