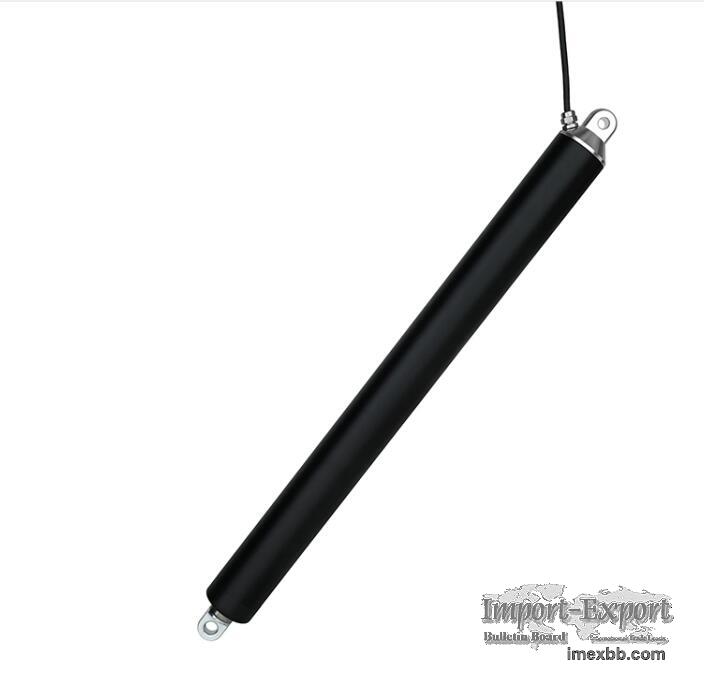

DDTG-55 High Speed Tubular Linear Actuator

DDTG-55 High Speed Tubular Linear Actuator
The DDTG-55 high speed electric actuator is a high-performance solution
designed for applications that demand rapid and precise linear motion. With
its advanced design and high speed linear motor, it offers quick response
times and accelerated speeds while ensuring precision and accuracy. This
actuator is ideal for industries such as robotics, automation, and
aerospace, where high-speed operation is critical for enhanced performance.

Technical Data of DDTG-55 Tubular Linear Actuators
Model DDTG-55
Input Voltage 12V or 24V or 36V or 48V
material of outer tube AL 6063/stainless steels 304
material of lead screw stainless steels 304
material of piston rod stainless steels 304
material of the nut DuPont POM, USA
Stroke Length 50～1000mm
Motor Type brushed motor
Max Load 400N (24V) / 250N(12V)
Load Speed 120-150mm/s
Limit Switch built-in
Duty Cycle under max load,work for 50 times , stop for 20minutes
（15%-20%）;under min load can work continuously
Protection Class IP67
Operating temperature -20-60ºC
Wire length Custom
Noise on load ≤60db

Dimension of DDTG-55 Tubular Linear Actuator
DDTG-55 Min. install dimension (mm) Standard Hall Sensor Over
Current Protection
L+S 315+S 330+S 335+S

DDTG-55 Tubular Linear Actuator Customizable Options
Wire length

Stroke length

Install dimension

Color

Bracket

Contr , ol box
