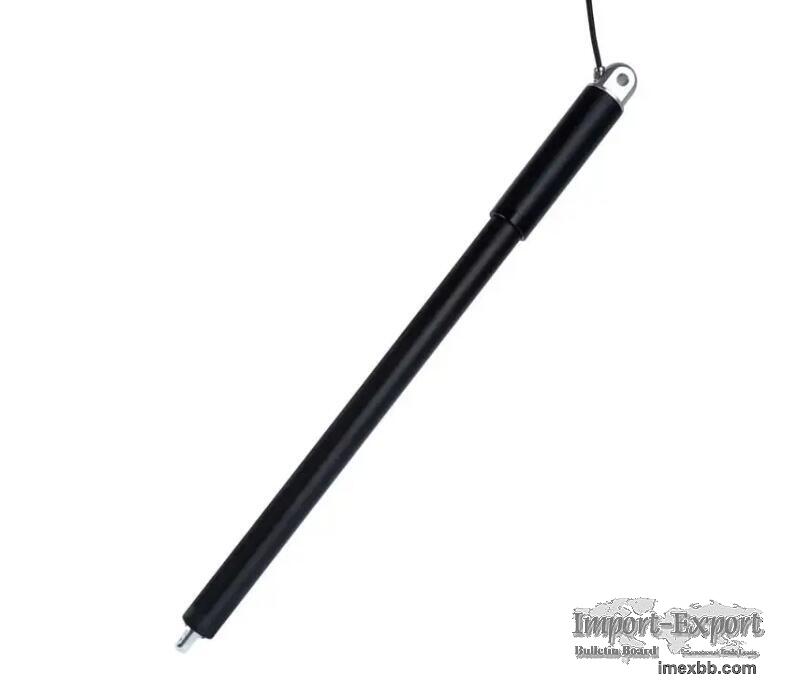

DDTG-53 Micro Tubular Linear Actuator

DDTG-53 Micro Tubular Linear Actuator
Compact and precise, the DDTG-53 Micro Tubular Linear Actuator is a small
but powerful linear actuator ideal for tight spaces and high accuracy
applications. With a diameter of 53mm and a force output of up to 200N, it
offers smooth and reliable linear motion using a ball screw mechanism and
stepper motor. Optional features include built-in limit switches and
position feedback.

Technical Data of DDTG-53 Micro Tubular Linear Actuator
Model DDTG-53
Input Voltage 12V or 24 or 36V or 48V
material of outer tube AL 6063/stainless steels 304
material of lead screw stainless steels 304
material of piston rod stainless steels 304
material of the nut DuPont POM, USA
Stroke Length 50～500mm
Motor Type brushed motor
Max Load 4000N
Self-locking Force 5000N
No-load Speed 4.8-24mm/s
Load Speed 3-15mm/s
Limit Switch built-in
Duty Cycle under max load,work for 50 times , stop for 20minutes
（15%-20%）;under min load can work continuously
Protection Class IP67
Operating temperature -20-60ºC
Wire length Custom
Noise on load ≤60db

Dimension of DDTG-53 Micro Tubular Linear Actuator
DDTG-53 (mm) Standard Hall Sensor Over Current Protection
Min. install dimension L+S 305+S 320+S 325+S
A 205 220 225

DDTG-53 Micro Tubular Electric Linear Actuator Customizable Options
Wire length

Stroke length

Install dimension

Material of outer tube（6063AL or SUS304）

Color

Bracket

Contr , ol box

If you want to know more kinds of heavy duty electric cylinder, please visit
our website.
