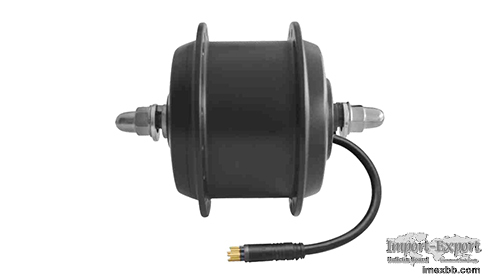

DGWQ1-Front Drive Motor

Suzhou Shengyi Motor Co, Ltd was established in 2003, a leading hub motor
supplier specialized in theesearch, development, production, sales and service
of the front drive motor. The products are popular all over the world.

DGWQ1 is the small light front portable bike motor, it provides a road bike to
become a folding bike, wheel size of 16in~24in, efficiency of 80%.

Main parameter of DGWQ1-Front Drive Motor
specification parameter
Driving position Front
Wheel size 16in-24in
Spoke 13G,36holes
hole diameter 3.2-3.4mm
Rated power 180W~230W
Rated voltage 24V~36V
Max.torque ≥20N.m
Efficiency ≥80％
Cable side Right
Number of magnet 14
Reduction gear ratio 0.000829398
Installation dimension 100mm
Inside speed sensor 1~6
Hall sensor With/Without
Brake V-brake
Classification of waterproof IPX5
Weight 2.0Kg

Minimum Order: 1 pieces
