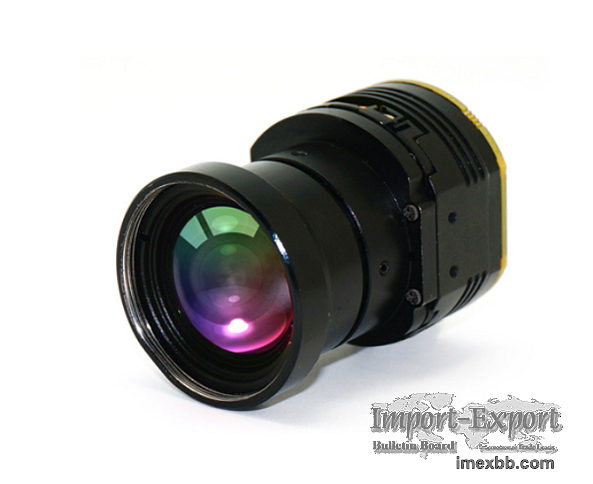

Digital HD Lens

LEI series is IP camera and LED series is digital camera, which provide HD
digital lenses of 300mm, 400mm, 540mm, 860mm and 920mm. It supports nine kinds
of intelligent functions, such as trip line intrusion, crossing fence, area
intrusion, items left behind, fast moving, parking detection, personnel
focusing, goods moving and wandering detection. OEM services such as logo,
language, functions and display can be adjusted depend on the project. Similar
to the production of other Walson security camera accessories, flatness
adjustment has also been applied in the production process of our digital HD
lens so as to ensure the consistency and reliability of this series.

Parameters Of Digital HD Lens

WLS-LEI Specification
Cataloge LEI8180 LEI5180 LEI2120 LEI2140
Sensor 1/1.8 CMOS 1/2 CMOS 1/1.8 CMOS
Lens Length 10.5~920mm 10~860mm 6~540mm 6~300mm
Min WD 5~10m 1~5m
FOV 38°~0.4° 42°~0.44° 65°~0.8° 59°~1.8°
F No F2.1 F2.0~F6.8 F1.4~F4.8 F1.4~F4.5
Resolution 2688*1520 @50fps/60fps 1920*1080 @25fps/30fps 3840*2160
@25fps/30fps
Shutter 1/3s~1/100000s, A/M
Min. Illumination 0.02Lux (Color); 0.05Lux (Color);
IRCUT Auto/Manual
NR 2D/3DNR
SNR ＞55dB
BLC Support, Optional area
HLC Support
Defog Electronic / Optical
Encode H.264H;H.265;MJPEG
Storage TF card, max to 256GB
Ethernet 100/1000M
Network Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP;
DNS; DDNS; PPPOE; IPv4/v6;
SNMP; QoS;UPnP;NTP
Digital Zoom 4X
Anti-shake Digital Support
Access Standard ONVIF;GB28181;
Power DC12V
Consumption Max：8.4W Max：6W
Working Conditions -30℃~+60℃ 20% to 80% RH
Dimension 395×145×150mm 175.3×72.2×77.3mm
Weight 5.6kg 0.9kg

Details Of Digital HD Lens

Ultra-long focal length 920mm,4MP, High definition

4K 8MP camera

Super defog (Optical defog + electronic defog)

Day-night Confocal

Temperature Compensation

Using SONY latest sensor, excellent imaging quality, and low illumination

Rich interface, convenient function expansion, easy using in ptz/demo

Support H265 and H264

Fast and accurate focusing

Support Onvif/GB28181, seamless access to mainstream platforms and other
network devices

Support storage of TF card

Full functions: heartbeat, PTZ control, alarm, audio, user management.
