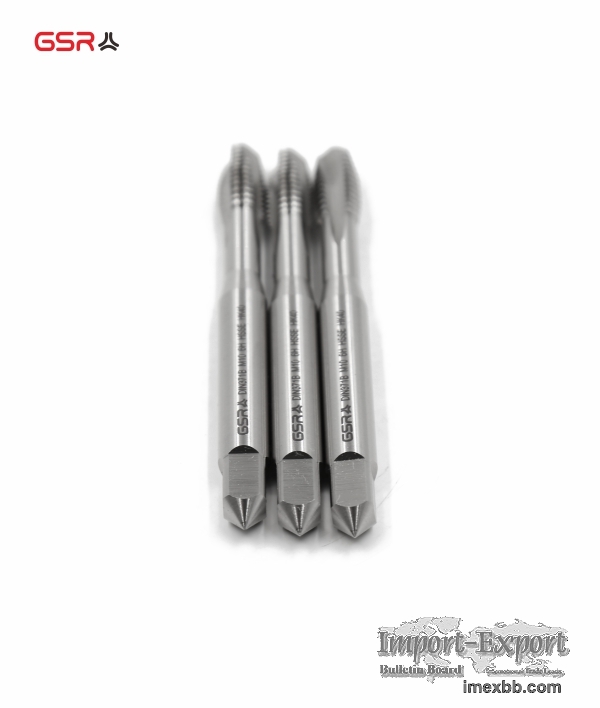

DIN371 DIN376 Machine Tap, Spiral Point through hole M6 M8

DIN376 Machine Tap Brief Introduction
Machine taps for ISO metric coarse threads are suitable for cutting internal
threads with a machine. The DIN 371 version has a reinforced shank (up to M10)
and the DIN 376 version has a reduced shank.

Technical Data
Standard DIN371/376
Material HSS-G/HSS-E
Tolerance ISO2(6H)
HRC 61-66
Surface Bright Finished/PVD Coating
Flute Type Spiral Point
Cutting Direction Right
Thread Angle 60°
Square DIN10
Application Internal thread cutting for through hole

Since the efficiency of hand taps is low, we also offer machine taps. Here are
some Machine Tapping Method and Precautions. GSR offer various types
of internal thread cutting tools.
