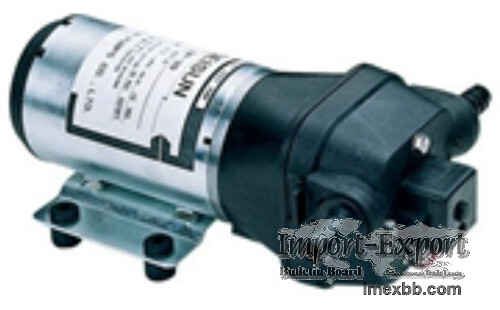

DP Miniature electric diaphragm p ump

DP type miniature electric diaphragm pump is driven by a DC motor (with voltages of
12V and 24V) as the power driving device, which drives the internal mechanical
eccentric device to perform eccentric motion. The eccentric motion drives the
internal diaphragm to perform reciprocating motion.
DP miniature diaphragm pump is driven by a motor to cause the internal diaphragm to
undergo reciprocating motion within the pump body, resulting in a change in volume.
When the diaphragm moves towards the inside of the pump body, the volume inside the
pump body increases, forming negative pressure. At this time, the liquid is sucked
into the pump body through the inlet pipe; When the diaphragm moves towards the
outside of the pump body, the volume inside the pump body decreases, forming a
positive pressure that pushes the liquid out of the outlet pipe, achieving
continuous liquid delivery.
Features:
Low noise, corrosion-resistant, high pressure, self-priming height of 5m.
Allow dry operation
Equipped with a pressure switch to protect the pump from damage during operation.
The internal overflow valve controls the normal operation of the pump.
Easy disassembly and assembly.
Adopt safe low voltage to ensure personal safety
Brushless motor voltage, DC12V or 24V

Minimum Order: 1 sets
