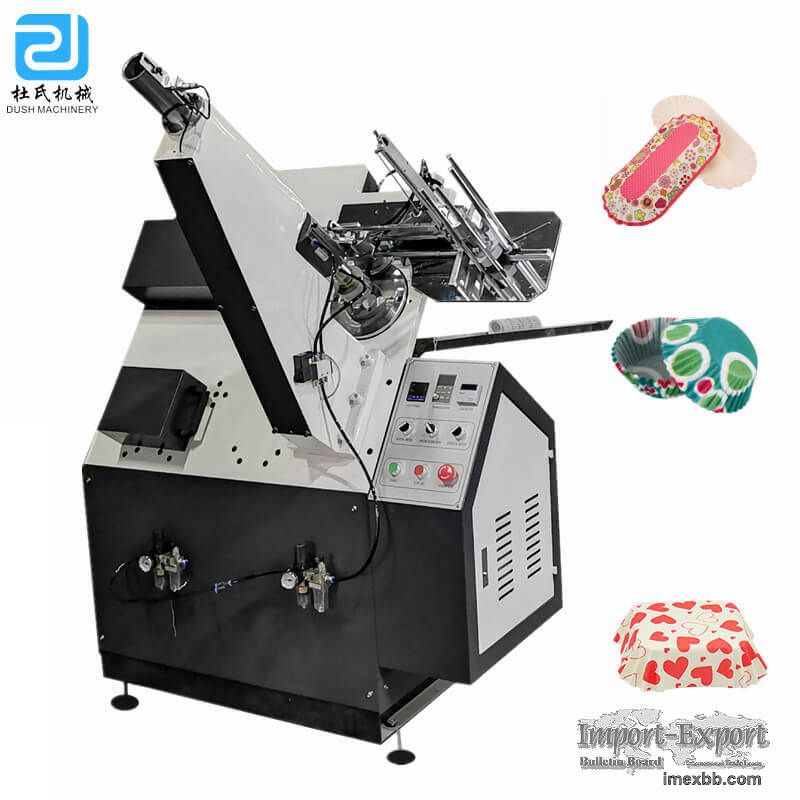

DS-JA automatic paper baking cake cup/tray making machine

This cake cup machine has a simple structure, adopts inverter control,
automatic temperature control, easy operation, high efficiency, stable
operation, and is a first-class equipment at home and abroad. It is suitable
for cake cup machine manufacturers, bakeries, western restaurants, snack food
factories and supermarkets.

Advantanges:
Pneumatic manipulator picking paperAutomatic separating paper
Size:
Mold is changeableφ55-φ140mm
Speed:
20-40times/min , .15-25pcs/time

Paper Baking Cup Machine has a first-class equipment at home and abroad with
the advantages of simple structure, inverter, auto temperature controller, easy
to operate, high efficient, stable running. It has the advanced technology such
as pneumatic manipulator controlling paper, auto separating paper, mold
punching-forming by heat, trays discharging etc. Easy exchanging molds to make
different sizes paper trays and aluminum foil trays.It is a ideal equipment of
making paper cake trays, paper food trays, paper cake cups, paper food dishes,
cake plates, cake dishes and containers etc.

TECHNICAL DATA
Suitable Size φ55-φ140mm(mold changeable)
Raw Material 24-50gsm anti-oil paper(grease proof paper), aluminum foil
paper,etc.
Ration Productivity 20-40times/min. 15-25pcs/time
Total power 4.0 KW
Air Pressure/Air Flow 0.3 m3/min, >0.6mpa(need to buy an air compressor)
N.W./G.W. 600kg/700kg
Electric Power 220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact
supplier for other type
Overall Dimension 1580L*1360W*1780H(mm)
