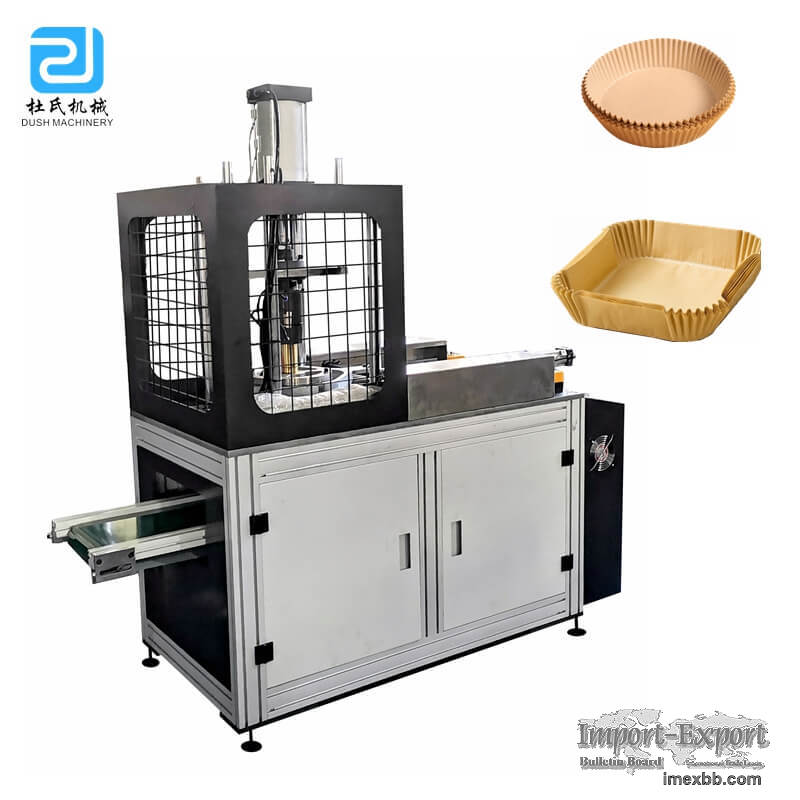

DS-JH semi-automatic air fryer paper baking liner making machine

This paper liner machine adopts and updates DS-JG’s automatic paper picking
system and shaping function. In this machine, worker will sort 25pcs paper,
then mechanical arm will pick the paper directly, transfer to mold, push to the
mold and form the shape by heating, which is designed for large size paper cake
tray, air fryer paper liners, etc.
Advantanges:
Easy to operateAutomatic paper feedingAutomatic paper shaping
Size:
Mold is changeableCan be customized size and shape

DESCRIPTION
This paper liner machine incorporates the upgraded automatic paper picking
system and shaping function from DS-JG. A worker sorts 25 pieces of paper,
after which the mechanical arm directly picks the paper, transfers it to the
mold, pushes it into place, and forms the shape via heating. This design is
tailored for large-size paper cake trays, air fryer paper liners, and similarly
sized products, while also accommodating small-size applications. The
machine’s primary advantage lies in its ease of controlling the precise weight
of the paper.

Paper Liner Machine – High-Efficiency Production for Baking & Food Packaging
Key Features & Benefits
High-Speed Production:Capable of producing 3,000–10,000+ liners per hour,
depending on model.
Precision Cutting & Shaping:Consistent sizing for muffin cups, cupcake liners,
and food tray inserts.
Multi-Layer Material Compatibility:Works with parchment paper, wax paper, and
food-grade PE coatings.
Automated Feeding & Stacking :Reduces manual labor and improves workflow
efficiency.
Customizable Dies & Sizes:Adjustable for different liner shapes (round, square,
fluted, etc.).
Durable & Low Maintenance:Heavy-duty construction for long-term industrial use.

TECHNICAL DATA

Suitable Size 250-450mm plain paper
Raw Material 30-50gsm anti-oil paper(grease proof paper), aluminum foil
paper,etc.
Ration Productivity 5-6 beats/minute, 25 or 50pcs/beat
Total power 4.0KW
Air Pressure/Air Flow 0.6m3/min, >0.8mpa (need to buy an air compressor)
N.W./G.W. 420kg/470kg
Electric Power 220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact
supplier for other type
Overall Dimension 1800L*710W*1780H(mm)
