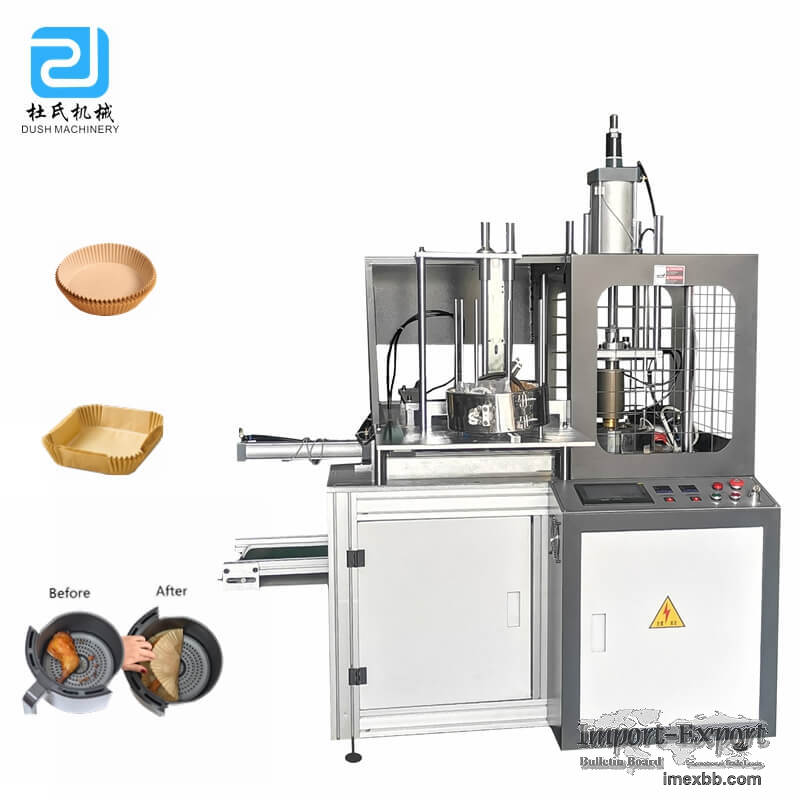

DS-JG automatic air fryer paper liner making machine

The AIR fyrer paper liner machine is a cutting-edge solution for bakeries, food
packaging, and disposable tableware industries. Designed for efficiency, it
produces high-quality paper liners with precision, ensuring uniformity and
strength. It runs a whole procedure of automatic separate certain amount paper,
clip paper, feeding paper, heating, molding, discharging.

Attribute
Advantanges:
A , utomatic paper pickingAutomatic paper feedingAutomatic paper shaping
Size:
Mold is changeable250-340mm plain paper

Parchment paper making machine, you can also call it AIR fyrer paper liner
machine，this machine is an advanced machine designed for baking market.
Parchment paper making machine runs a whole procedure of automatic separate
certain amount paper, clip paper, feeding paper, heating, molding, discharging.
Machine owns the function that when paper is almost used up, machine will alarm
to remind. The machine owns excellent performance, low noise, high efficiency,
durable and stable product quality. It can make different shape and size paper
liners and cake trays by changing molds. Besides, we also have DS-JH manual
model as choice some bigger size, shape and market demand.

What paper cover products can this machine produce?
Bakery cover
Restaurant cover
Butter paper cover

TECHNICAL DATA

Suitable Size 250-340mm plain paper
Raw Material 30-50gsm anti-oil paper(grease proof paper), aluminum foil
paper,etc.
Ration Productivity 8-10 beats/minute, 25+/-1pcs/beat or 50+/-1pcs/beat
(depends on paper thickness, the paper amount will be different)
Total power 4.0KW
Air Pressure/Air Flow 0.6m3/min, >0.8mpa(need to buy an air compressor)
N.W./G.W. 550kg/630kg
Electric Power 220v, single phase, 50Hz; Contact supplier for other type
Overall Dimension 1650L*1740W*1880H(mm)

MAIN FEATURES
Molding process and eternal temperature,the device use the ceramics material,
can bear the temperature over 400 degree as show pic right

Molding process and eternal temperature,the device use the ceramics
material,can bear the temperature over 400 degree as show pic right

Panel & touch screen

Strong cylinder

Final product convey belt

Paper using up detecting sensor

Paper Baking Cup Machine--baking cup, Paper crimp cup or muffin cup and tulip
wraps
Dush Machinery specializes in manufacturing various types of baking paper cups,
which can produce baking paper cups of different shapes, thicknesses, sizes,
etc.
