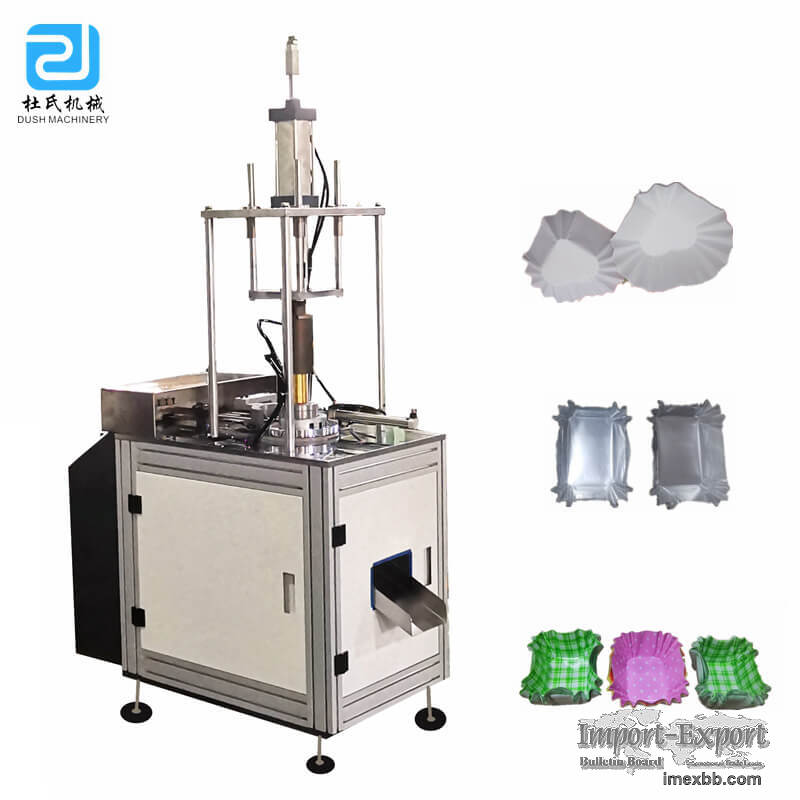

DS-JB Manual Paper Cake Cup/Tray Forming Machine

Advantanges:
Customzied shape and sizeEasy to operate
DESCRIPTION
Manual Paper Cup Making Machine – Affordable & Efficient Small-Scale
Production

The manual paper cup making machine is a cost-effective solution for startups,
small businesses, and entrepreneurs looking to produce disposable paper cups
without heavy machinery investment. Perfect for tea/coffee cups, ice cream
cups, and food containers, this machine offers an accessible entry into paper
cup manufacturing.
This manual paper cup making machine is designed on the basis of the DS-JA
automatic paper cake tray machine to meet market requirements. Users manually
separate and feed dozens of paper sheets into the input entrance, after which
the machine automatically transfers them to the mold, pushes them into place,
and forms the shape via heating. This design is suitable for large-size paper
cake trays, heavy paper materials (up to 80gsm), foil trays, and similar
products, while also accommodating small-size applications.
The key difference between the DS-JA and DS-JB paper cake tray machines lies in
their paper separation and feeding processes. The DS-JB semi-automatic model
requires manual feeding throughout the process.

PRICE FACTORS TO CONSIDER

Machine Build Quality (Steel vs. aluminum frames)
Cup Size Compatibility (Additional molds may cost extra)
Brand & Supplier (Local vs. imported machines)

TECHNICAL DATA

Suitable Size any size (mold changeable)
Raw Material 24-50gsm anti-oil paper(grease proof paper), aluminum foil
paper,etc.
Ration Productivity 20-30beat/minute, 15-35pcs/beat(depends on workers'
operation)
Total power 2.5 KW
Air Pressure/Air Flow 0.3 m3/min, >0.6mpa(need to buy an air compressor)
N.W./G.W. 200kg/250kg
Electric Power 220v, single phase, 50Hz; Contact supplier for other type
Overall Dimension 1160L*580W*1920H(mm)
