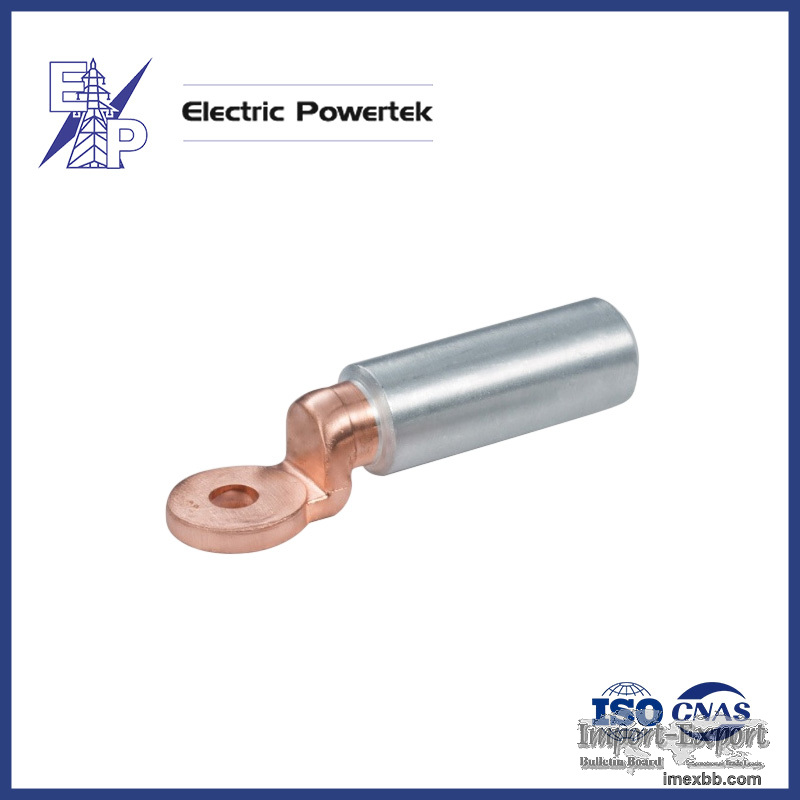

DTL-2 Bimetal Terminal Connector Cable Lug

Products property: Due to the coupling effect when Aluminium comes in contact
with Copper, corrosion will happen in a short time. Currently the best solution
is to use Aluminium-Copper bi-metal connectors.A Cable Lug should be used for
termination. The friction welding is well done. And its barrel capped is filled
with joint compound to avoid oxidization. The type is follow IEC 61238-1.
Type A（mm) P±0.3 D±0.5 d±0.3 L±3 L1±0.3 W±0.5 S±0.3
   DTL-2-16-11 Φ11 Φ16 Φ6 80 40 Φ20 3
DTL-2-25-11 Φ11 Φ16 Φ7 80 40 Φ20 3
DTL-2-35-11 Φ11 Φ16 Φ8.5 80 40 Φ20 3
DTL-2-50-13 Φ13 Φ20 Φ10 90 43 Φ25 4.5
DTL-2-70-13 Φ13 Φ20 Φ11.5 90 43 Φ25 4.5
DTL-2-95-13 Φ13 Φ20 Φ13.5 90 43 Φ25 4.5
DTL-2-120-13 Φ13 Φ25 Φ15 115 59 Φ30 5.5
DTL-2-150-13 Φ13 Φ25 Φ16.5 115 59 Φ30 5.5
DTL-2-185-13 Φ13 Φ32 Φ18.5 122 60 Φ30 6
DTL-2-240-13 Φ13 Φ32 Φ21 122 60 Φ35 6
