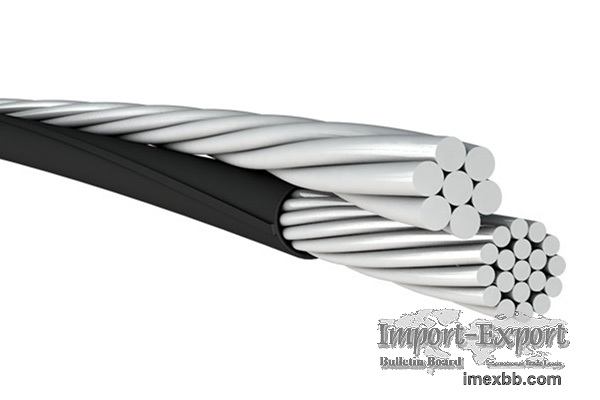

Duplex Service Drop Wire

Duplex service drop wire or duplex service drop cable, has two electrodes that
are laid out in a concentric thread. One is bare and acts as a neutral
conductor, Anoher one is an insulated phase electrode. The neutral messengers
are concentrically stranded AAC, AAAC, or ACSR. The phase conductors are
concentrically stranded compressed 1350-H19 AAC and insulated PVC or XLPE.

Utilized mostly for 120 volt overhead service applications such temporary
construction service and outdoor illumination. To be utilized with conductor
temperatures no more than 75°C for conductors insulated with polyethylene or
90°C for conductors insulated with crosslinked polyethylene (XLPE) and a
phase-to-phase voltage of no more than 600 volts.

Duplex Service Drop Wire Features
01.
Construction
Its construction is the same as that of quadruplex overhead wire. Phase
conductor: AAC, neutral messengers: AAC or AAAC or ACSR, Insulation:PE or XLPE

02.
STANDARD
Just like triplex overhead wire for sale, the standard of duplex service drop
wire is ASTM B230, B231, B232 and B-399 ,B498,ICEA S-76-474.

03.
Application
This sort of overhead insulated cable is used for street lighting, outdoor
lighting, and temporary service for construction etc.

Specifications of Duplex Service Drop Wire

Minimum Order: 100 metres
