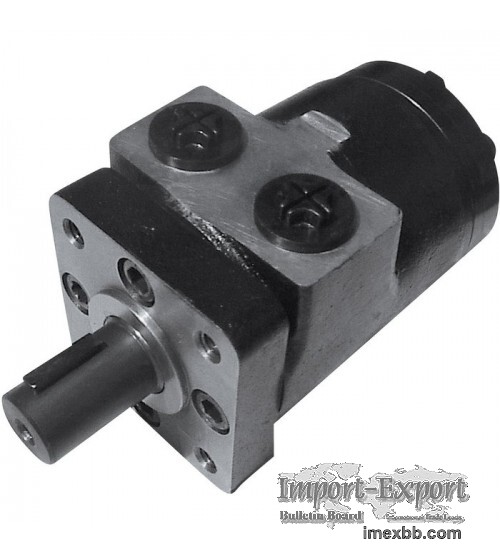

Dynamic Low Speed, High Torque Hydraulic Motor - 15.8 GPM, 1250 PSI

For light- and medium-duty applications. Replacement for Charlynn H, White HS and Ross TRW MG series. Maximum inlet pressure is 2500 PSI and maximum back pressure is 1000 PSI. Fully reversible. 4-bolt mount. 1in. x 1 3/4in. shaft has 1/4in. keyway. 1/2in. NPTF ports. Orbiting Gerotor Principle


What's Included

(1) Hydraulic motor



Features + Benefits

Compact, highly efficient, low speed high torque design can be used in either parallel or series systems
Various applications are construction, agriculture, turf markets, mobile, aerial lifts and more
23.6 cu in. rev displacement
150 RPM
3850 max torque
1450 PSI
15.8 GPM
1in. Woodruff Key Shaft (K)

Key Specs
Item# 1039
Brand Dynamic
Manufacturer's Warranty 12 months parts / 12 months labor
Ship Weight 17.0 lbs
Mounting Type 4-bolt
Shaft Dimensions Diameter x L (in.) 1 x 1 3/4
Port Size (in.) 1/2 NPTF
Displacement (cu. in.) 23.6
Max. RPM 150
Max. PSI 1,250
Max. Torque (in.-lbs.) 3,720
Max. Flow (GPM) 15.8
