Electric Hydraulic Mooring Winch Compact Strong Structure

Product Description
Electric Hydraulic Mooring Winch



Description

Hydraulic winches are usually used to ship’s mooring with large rated load. It
includes hydraulic motor(can be multiple speed), gear box, clutch, drum, warping
end, Hydraulic power unit, electric switchboard, etc. HPU is driven either by
electric motor or diesel engine. Our designers team has 30-years’ experience. We
produce compact strong structure and reliable operation & stability, easy for
maintenance. We provide spare parts which can reach everywhere as your demand.



Main Specification

Safety Pull Capacity: 5-800KN
Speed: 4-12m/min
Warping Speed(m/min):9-18m/Min
Drum Capacity: 40 to 250m
Single/Double Drum
Single/Double warping end
Motor Power: 4 to 132 kw
Rope Dia. 11 – 90 (mm)
Control position: Remote and local control;
Optional: Load measuring, rope speed and length measuring device.
Power Supply: AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH
Material: Stainless Steel (Polished), Mild Steel,
Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.


Main Technical Parameters:

Rated Pull Rated Speed Drum Capacity Motor Power
Ton kN m/min mm*m kW
0.5 5 ≥12 φ8*100 —
1 10 ≥12 φ10*150 5.5
2 20 ≥12 φ15*150 11
3 30 ≥12 φ17*150 15
4 40 ≥15 φ8*150 22
5 50 ≥15 φ20.5*180 30
7.5 75 ≥15 φ26*200 45
8 80 ≥15 φ26*200 37
10 100 ≥15 φ30*200 45
15 150 ≥15 φ30*200 45
16 160 ≥15 φ32*250 75
20 200 ≥9.6 φ40*250 75
25 250 ≥9.6 φ44*250 90
31.5 315 ≥7.8 φ52*250 90
40 400 ≥7.8 φ56*250 110
45 450 ≥6 φ56*250 110
50 500 ≥7.8 φ58*250 110

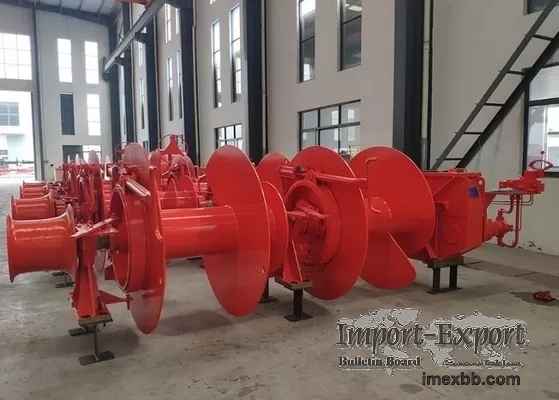

Electric Hydraulic Mooring Winch Compact Strong Structure 0
