Ship loaders with telescopic chute for bulk material handling

Product Description
Ship Loaders for Bulk Material Handling Ship Loader with

telescopic chute Ship Loaders with Gravity Spiral Chute

Brief introduction of ship loader

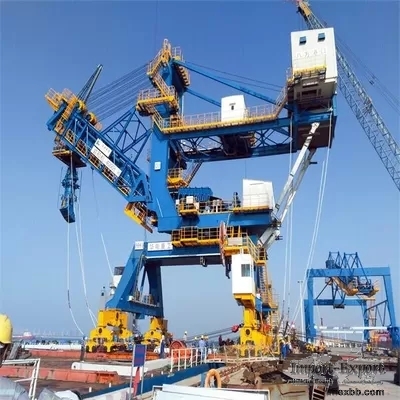

Ship loader is a large-scale bulk machinery used in bulk terminal loading.
The general Ship loader is composed of boom belt conveyor, transition belt
conveyor, telescopic chute, tail car, traveling device, gantry, tower,
pitching mechanism, slewing mechanism, etc. Large port bulk loading
equipment plays an important role in the high-speed, stable, efficient and
rolling development of energy, power, metallurgy, port and other industries,
especially some bulk material distribution centers. Ship loade is usually a
continuous unloading operation. Therefore, there must be matching equipment
to provide continuous material flow, so that the ship loader can ship
continuously. Such as the granary feeding of grain terminal, the continuous
feeding of bucket wheel reclaimer in the yard of coal terminal, etc.

Specification of ship loader

vessel capacity unload time lift capacity
of grab weight of
single grab cycle
times one cycle density of
bulk material rail
distance rail wheel
pressure extending reach distance
of grab rear reach
distance of grab hoisting
speed lowering
speed trolley
speed traveling
speed
DWT t/h hours T T 　 s t/m3 m 　
kN m m m/min m/min m/min m/min
1000 340 2.94 10 5.5 61.82 58.23529 0.85 16
QU80 350 23 21 90 100 120 25
5000 500-2000 2.5~10 12.5~48 7.3~28 67.42~71.43 52.56-53.4
0.8~0.9 10.5~20 QU80~100 245~600 24~28 8~16 100~160 120~190
150~240 20
8000 1000 8.00 25 14.8 67.57 53.28 　 20
QU100 350 28 17 135 150 180 20
20000 800-1000 20.00 22~30 13.3~14.8 55.56~67.57
53.28~64.8 0.85 16~22 QU80~120 330~530 24~38 21
12~135 135~150 180 20~25
30000 1250 24.00 32 19.6 63.78 56.448 0.95 16
QU100 505 33 14 135 150 220 25
35000 800~1600 21.88~43.75 22~40.5 12.8~25 62.52~76.19
54~57.6 0.85~0.95 14~24 QU80~100 330~530 27~31 11~19
120~135 135~180 180~220 20~25
50000 1250~1650 33.3~40 32~40 19.5~25 60~67.35 56.16~60
0.85~0.95 22~26 QU100~120 500~520 30~33 17~19 150~200
180~240 180~220 20~25
70000 1250~1750 40~56 34~42 20.5~25.75 52.08~68
53~69.12 0.85~0.9 22~30 QU100~120 500~600 32~40
16.5~27 160~220 190~240 180~240 20~25
100000 1000~1800 55.56~100 30~46 18~27.6 55.56~75.12
48~64.8 0.8-1 22~26 QU120 450~600 30~38 17~20 135~180 150~220
180~240 25
150000 1800~2100 71.42~83.33 45~52 27.2~31.5 63.16~66.67
54~57 0.90~2.4 24~28 QU120 600~736 39~41.5 19~24 160~200
190~240 200~240 20~25
