Electric Steel Wall Box Roll Forming Machine

Electrical enclosure Production machine technical parameters

Item

Technology parameter

Material

Material

c , old-roll strip,galvanized steel strip

Thickness

1.0-1.5mm(base on 1.5mm design, when T.1mm effect alittle not good as
1.5mm)

Coil Inner

Ф360—Ф510

Process

F , orm Speed

0-13m/min

Length

Not limit

Quality

Length Precision

L≤1000mm:±0.5㎜

Stra , ight,

Deflection

L≤1000mm,Bend no more than 1mm;Deflection no more than 2mm

Forming size

As per design



Electrical distribution board roll forming machine production line process



Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll
forming machine →Bending device



Carbon steel & stainless steel box production line technology explaination

This production line is equipment for production of distribution boxes. The
strip coil to be processed is manually placed on the uncoiler, and then
corrected and tensioned. After leveling, it enters the hydraulic pre-punching
and punching notch, and is sent to the forming machine by the guide device to
form. Under the frictional damping action of the forming roller and pressure
roller, after entering the bending part at a linear speed of 0-13m, the box is
cut and bent as required, and then manually packed away. This production line
produces 2-3 enclosures per minute. the production box quantity speed according
to different product specifications.
Electric steel wall box IP66 roll forming machine manufacturer
https://www.superdamc.com

Minimum Order: 1 sets

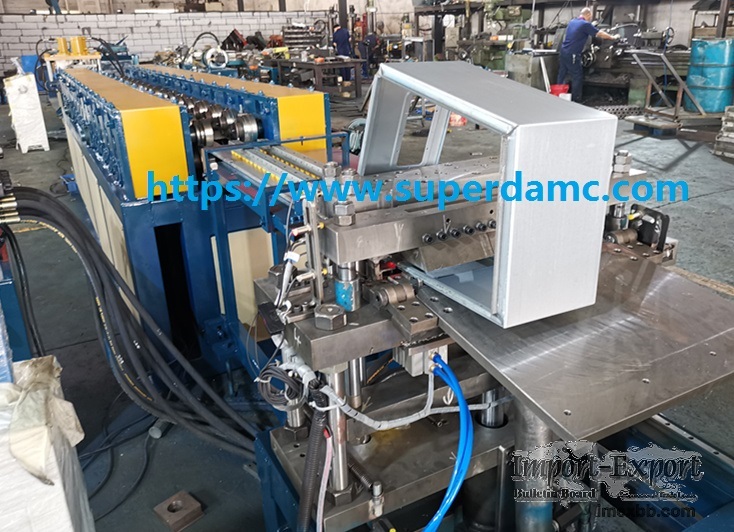

Electric Steel Wall Box Roll Forming Machine
