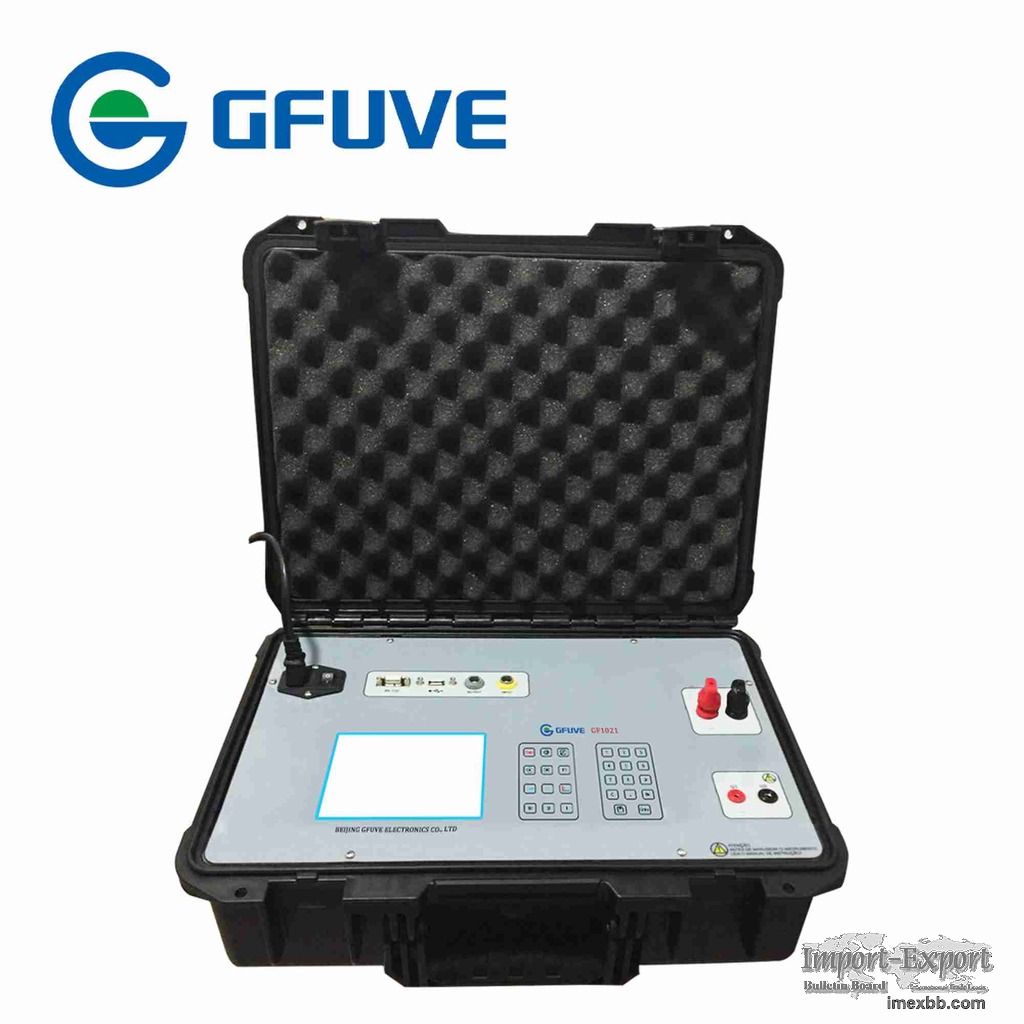

Energy meter test bench GF1021 GFUVE, R&D lab field portable one phase 500V

GF1021 single phase portable energy meter test system used to test single phase
energy meter error. Adopt mature signal synthetic and power amplifier technology,
high precision voltage source and current source output. Widely used in lab and
field, and then as single phase standard source. The portable meter test equipment
offers high functionality combined with an excellent menu guided operation via
coloured 7' touch screen or externally via interface.

Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF1021
Accuracy: 0.05%, 0.1%
Power supply: One Phase AC 85-265V, frequency 50/60Hz.
Voltage and Current output range: 0-500V/0-120A
Voltage Adjustment range: (0-120)%RG
Adjustment fineness: 0.01%RG, 0.1%RG, 1%RG, 10%RG
Active power output stability: <0.01%RG/120s
Reactive power output stability: <0.02%RG/120s
Active power measuring accuracy: 0.05%RG
Reactive power measuring accuracy: 0.1%RG
Weight: 8 kg

Minimum Order: 1 sets
