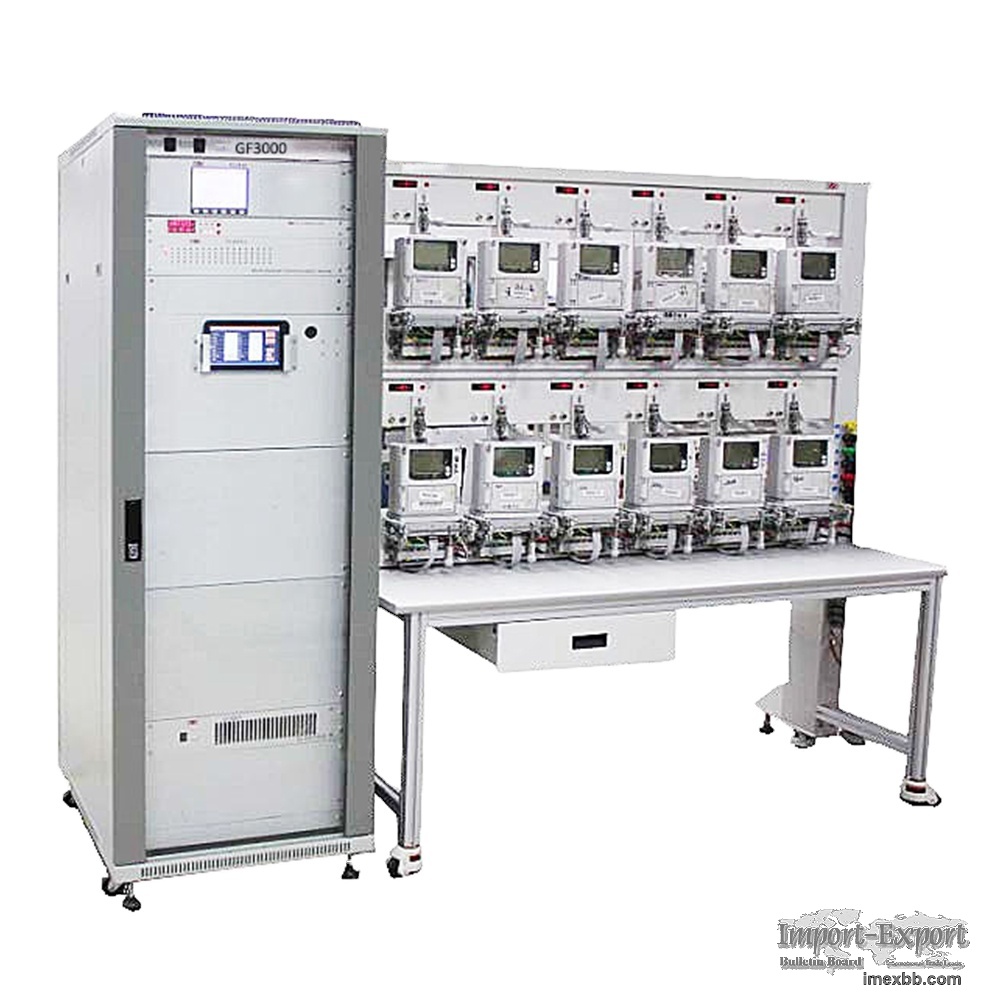

GFUVE Stationary multi-positions energy meter test bench GF3000

The GF3000 series stationary three phase energy meter test bench is a fully
automatic system that enables simultaneous, multi-position calibration and
verification of three-phase electric energy meters error. Full compatibility with
IEC 60736, excellent parameters, superior functionality and outstanding
flexibility, It adopt the most advanced electronic measurement technique and
modular concept combine the difference three phase reference standards and power
amplifier. GF3000 three phase meter test equipment is applied in the measurement
centre of grid company energy measurement department of power supply company and
energy management utility, industrial enterprise and meter manufacturers.

Specification
Warranty: 3 years
Power: Electronic
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF3000
Accuracy: 0.02%, 0.05%, 0.1%
Power supply: AC 180-265V, or 3x220/380V±15%, frequency 50/60Hz.
Measuring voltage range: 57.7V, 100V, 220V, 380V (max 480V)
Voltage Output load: 1500VA
Measuring Current range: 0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A,
120A
Current Output load: 1500VA
Power factor measurement range: -1 ~ 0 ~ 1
Power factor measurement accuracy: 0.0005
Dimension: Cabinet size: 800 * 600 * 1850mm; Bench size: 2*2400 * 760 * 1846mm
Declaration of conformity: CE & CNAS certified

Minimum Order: 1 sets
