EPS 57600 Egg Incubator Automatic Hatchery Machine

Product Description
57600 Eggs Incubator hatchery hatching machine For Chicken Eggs

Chicken egg setter Model EL-57600



we customize incubator for any animal eggs



Model
Capacity

(chicken eggs)

Number of Trolley Number of Tray Max.
Power Outside Size
(mm)
Setter EL-57600 57600 12 384 9.6kw 4580x3800x2400

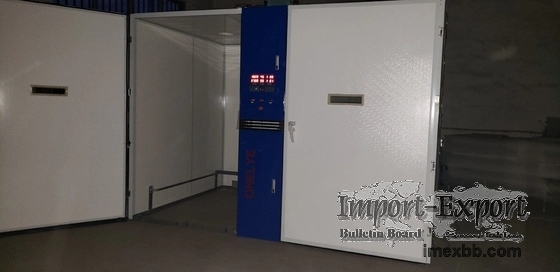

Modern single-stage incubator is the mainstream incubation equipment. The high
performance incubator with large capacity and whole-in & whole-out hatching,
based on experience data, research and development results. It is aiming to
produce high quality chicks and professional service.





FEATURES
• All EPS sandwiched panel for incubator shell, it is made of environment-
friendly materials with EPS foam as its sandwiched

core. This panel has a lot of advantages, such as good thermal preservation,
anti-bacterial, anti-corrosion, high strength,

excellent impact resistance and good weather resistance. This panel is best
choice for incubator, even use in very bad

environments, it can keep itself as new after 10 years.
Hot galvanized trolleys and all frame of the machine adopts plastic painted,
it keep the machine to use long years.
Joint control of temperature, moisture and dampers to reduce temperature
fluctuation.
• By the new heating method, the incubator can adjust heat automatically
according to the environment temperature and

the embryo growth cycle, keeping a stable temperature inside.
• With the damper hover control technology, the incubator can control
ventilation accurately.
• New ventilation structure- Exhaust, air intake and enforced air cooling ducts
are isolated from one another to replenish

oxygen and dissipate heat at the late stage of incubation.
Professional water cooling system for the incubator, which keeps the machine
cooling very soon, especially for hot area.
• Auto-monitor temperature, dampers, stirring fans, egg turning and power
supplies. When a disorder appears, it can send

a sound/light alarm.
• The user can start the emergency control system to ensure incubation when the
main control system goes wrong.



Main capability:
Digital displaying of temperature, humidity and turning frequency
Full automatically temperature controlling
Full automatically humidity controlling
Full automatically eggs turning
Full automatically alarming
Full automatically cooling and CO2 damper system
Back emergency system

Main technology index of machine:
Temperature precision display: 0.01℃
Range of temperature controlled: 35--39℃
Precision of temperature controlled: 0.1℃
Humidity precision display: 1%RH
Range of humidity controlled: 30-75%RH
Precision of humidity controlled: 2%RH
Range of CO2 controlled: 1000-9999PPM
Precision of CO2 controlled: 100PPM
Angle of eggs-turning: 41-45°
Setting time of eggs-turning: 0-190minutes


FULL TECHNOLOGY AND FUNCTION
• Digital temperature, humidity and turning frequency displaying.
• Automatic turning system tilting the eggs 45º once per two hour. According
your actual request, you can set turning interval
time you need.
• Big middle stirring fans with automatic heating and centrifugal humidifying
system.
• Backup emergency and alarming system for insurance using.
• Automatic air cooling system, and water cooling system.
• CO2 damper control system to keep enough Oxygen for the Embryonic
development, improve hatching rate and save
unnecessary energy loss
• Ultra-high temperature record and research function
• Hatching period record
• Water-proof light inside.
• Made of polyester, double wall construction for a perfect insulation.
• Operates on 380V, 50HZ, 3Phases
• Hot galvanized Trolley egg-frame for easy operating, inside disinfecting and
cleaning.
• Fiberglass panel to keep no rust and bacterium, Panel thickness 75mm
