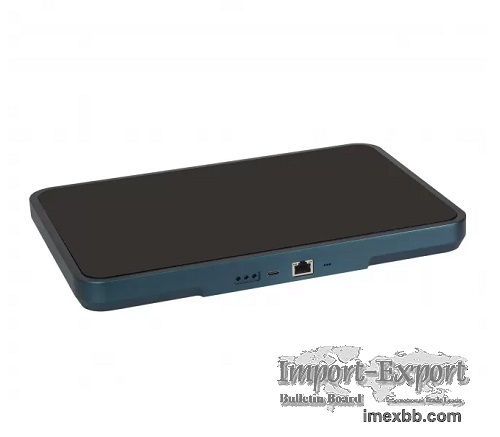

Ex10 Multipurpose UHF RFID Reader

RRU732U-NF/RRU532U-NF/RRU332U-NF is designed upon fully self-intellectual
property. Based on proprietary efficient digital signal processing algorithm,
it supports fast tag read/write operation with high identification rate.
RRU732U-NF/IP can be widely applied in many RFID application systems such as
logistics, access control, anti-counterfeit and industrial production process
control system.
Ex10 Multipurpose UHF RFID Reader FEATURES
Self-intellectual property;
Designed with IMPINJ E710/E510/E310 and support ISO18000-6C(EPC C1G2)
protocol tag, featuring excellent multi-tag anti-collision functionality;
865~868MHz/902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 27dbm(adjustable);
Maximum inventory speed* up to 1000pcs/s (using E710) or 600pcs/s (using E510)
or 350 pcs/s (using E310);
Support RSSI, Tag buffer size up to 1000PCS@96bits EPC;
Built-in antenna, typical reading effective distance ＜50cm*
Low power dissipation with Type-C USB 3.0 power supply (POE optional);
Support Type-C USB3.0 interface (Bluetooth 5.1 optional);
Provide DLL and Demonstration Software Source code to facilitate further
development.
