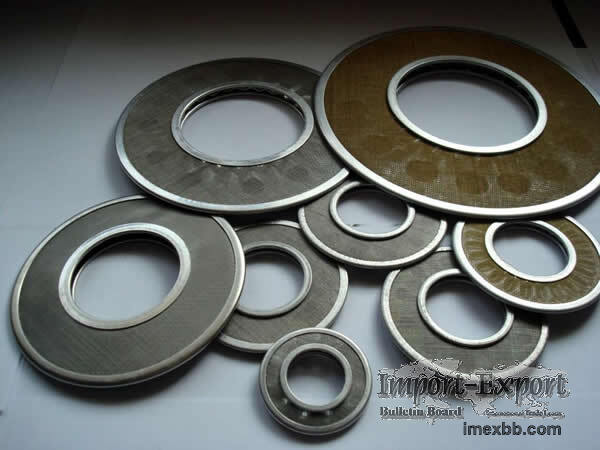

Extruder Screen Packs

Extruder Screen Packs: Spot Welded Packs and Framed, with woven mesh,
perforated screen, sintered mesh and etched Mesh plate As filter media layers
Types: Multi-layer filter media edge covered disc, welded disc with rims.
The spot-welded wire mesh filter packs have an Aluminium or Stainless steel rim
around discs offering greater rigidity and strength compared with mesh discs
with no rims or frames.

Disc Sizes: any size available according to requirement.

Material: Stainless steel 304,316,316L, or black wire cloth, etc.

Mesh types: Woven mesh, dutch mesh, perforated mesh, sintered mesh, etched mesh
sheet,etc.
Layers: 2, 3, 4, 5 layers

Extruder screen packs shapes:
Round, rectangle, leaf, oval and other shapes.

Multilayer Extruder Screen
Multilayer Extruder Screen is used for fine and thin level of extrusion to
prevent the mixing of foreign particles. The Filter Screen Packs help in making
extrusion more clear and clean. We offer metal screen packs available in
standard and customized sizes as per your specifications. Multilayer mesh
screen are welded with or without selvage.

Materials: Plain steel wire mesh and stainless stee wire mesh can be welded
together.

Extruder screen is applied in the following fields:
Petrochemical industry
•Plastic and Rubber industry
•Chemical industry
•Aeronautic industries
•Water treatment plant
•Food processing industries.

Framed Multilayer Screen Packs
Extruder Screen Filter, Two Layers ( Backing Mesh and Filter Mesh), for
Extruder Machine
Screen filter mesh for extruder machine:
Screen filter mesh size 2.5" 40, for backing
Screen filter mesh size 2.5" 300 for filtration
Mesh type: Woven wire

49-50mm Round Shape Wire Multilayer Extruder Screen PacksDouble layer screen
framed round shape filters
Multilayer Extruder Screen Packs: 49-50mm, 0.1mm + 1mm mesh screen, and 0.3mm +
1mm screen, double layer.
Mesh type: Woven wire

Multi (4) Layer Stainless Steel Round Screen Extruder Filter Disc Mesh for
Extrusion Machines4 layer round filter mesh (stainless steel) for plastic
extrusion machines
Mesh disc filter screen for extruder with specification below:
Material filter: stainless steel 304
4 layers filter mesh:
20/80/100/60 stainless steel mesh
40/60/80/100 stainless steel mesh
Material frame: aluminum
Dia. 200 mm
Mesh type: Woven wire

Stainless Steel Extruder Filter Mesh for Plastic Pellet MachineStainless steel
extruder filter mesh
Filtering Screen, 300mm, Stainless Steel, 50 mesh x 0.2mm wire
8" PVC Pipe - Extruder Screen
Extruder screen with dimension of O.D.: 7.8", Mesh size: 8X8 (0.0937"
openings), and 0.04" wire diameters
Mesh type: Woven woven

50mm or 75mm round shape black wire cloth multilayer extruder screen packs
Multi Layer Wire Cloth Filter Screen
Multilayer Circular Extruder Screens
100mm Round shape
2 layers:
mesh 40, wire diam: 0.254 mm, aperture size: 0.38 mm
mesh 160, wire diam: 0.0635 mm, aperture size: 0.0965 mm
Mesh type: Woven wire

Mesh Packs with Aluminum Frames
Round screen extruder screen
Filter media layers:
Mesh 20 x 0.40 mm diameter, ss 304
Mesh 40 x 0.26 mm diameter, ss 304
Filter mesh type: Woven wire
