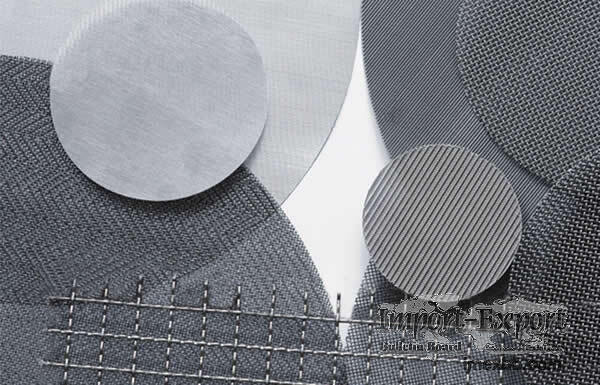

Single Layer Wire Mesh Disc

Single Layer Disc Screen in stainless steel and brass mesh with disc diameter
ranging from 1-60 inch
Single-layer disc is in contrast with multi-layer pack screen. The number and
the arrangement of welding spots can be produced according to specification
requirments. Since single layer disc screen needs simple processing compared
with multi-layers, it costs less than pack screens. Processed from mesh cloth
(woven mesh or sintered mesh sheet) and sheet metal (perforated sheet or
expanded mesh) into circular shapes.

Disc Diameter: 1-60"
Disc shapes: Rectangle, oval, round, square and annular mesh sheets.

Material Options:
Stainless Steel Mesh (SS 304,SS 304L,SS 316,SS 316L);
Copper Mesh (Red copper Mesh,Brass Wire Mesh,Phosphor Bronze Wire Mesh);
Low Carbon Steel Mesh;
Aluminum Mesh.

Application:
Features: Smooth surface with no sharp edges, burrs or acute angles. Anti-
abrasive & anti-corrosive in nature, and high filtration capacity. Available in
different size and variants according customers order.

Edge: With or Without Framework.

Woven Mesh Filter Media Range:
Wire Diameter:0.025-3.4mm
Aperture Size:0.026-23.4mm
Weave Type:Plain Weave (3-300 Mesh); Twilled Weave(20-635 Mesh); Dutch Weave
(7x40mesh-325x2300 mesh)

316L Stainless Steel Dutch Weave Wire Mesh Filter Cloth Discs:
Mesh Discs
Single screen framed round shape filters with 0.1mm, 0.3mm and 1mm screens.

Expanded Mesh Discs of Diamond Opening:
Diamond Mesh Discs

Spot Welded 304 Mesh Cloth Extruder Screen Discs:
Single screen disc 80 mesh filtration
80x80 circular screen with circular diameter of 90 mm for extruder filtering

Square Wire Mesh Discs Used as Extruder Screen Replacable in Plastic
Processing:
Mesh: 20mesh x wire 0.40

Spot Weld Extruder Screen, Single Disc
152x30, 121um filtration

Extruder screens, single disc type in mild steel material
Plain steel mesh disc, diameter 220mm, 30 mesh x wire 0.30mm
Plain steel mesh disc, diameter 170mm, 40 mesh x wire 0.25mm

Standard wire mesh for foam extruder screen
Three types:
Mesh #40, in disc diameter 120mm
mesh #40, in disc diameter 175mm
mesh #100, in disc diameter 175mm
