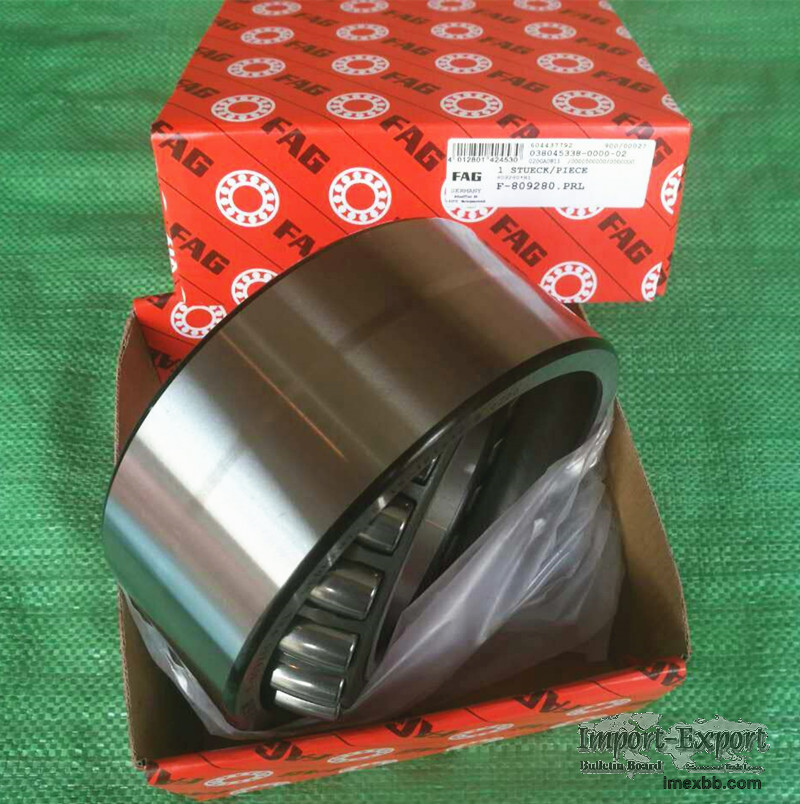

FAG Mortar Mixer Bearing PLC58-6 PLC59-5 Spherical Roller Bearings FAG TIMK

FAG Mortar Mixer Bearing PLC58-6 PLC59-5 Spherical Roller Bearings FAG TIMKEN
SKF

perfectbearing#perfectbearing#com
Skype/Wechat/Whatsapp: eight six one eight nine six three five nine two six one
eight


1. FAG Mortar Mixer Bearing PLC58-6 Specification:

1). Bearing Models: PLC58-6
2). Inner Size: 100mm
3). Outer Size: 150mm
4). Thickness: 62mm
5). Dynamic Load: 310kN
6).Static Load: 550kN
7).Mass: 3.7kg

2. FAG Mortar Mixer Bearing PLC58-6 PLC59-5 Features:
The following bearings are designed for use in mobile cement mixer gearboxes.
The bearings are mounted onto the main shaft of the gearbox and are offered in
three basic designs: PLC 58-6, PLC 59-5, and PLC 59-10, all have awider outer
ring, increasing the self-aligning ability of the bearing. These bearings are
produced within ABEC 1 tolerance and have a C0 radial clearance.
The PLC 59-5 has a two-piece brass cage, which allows a higher operating
temperature than other plastic cage
designs. The brass cage also offers complete compatibility with all synthetic
lubricants.

The PLC 59-10 also has a two-piece brass cage and offers all the same design
advantages as the PLC 59-5. This
bearing also has a high capacity design, which increases the dynamic and static
load ratings. Both PLC 59-5 and
PLC 59-10 have a two-piece split outer ring, which allows for maximum rollers
and a narrower inner ring.

The PLC 58-6 has a polyamide cage, which allows the bearing to be assembled so
that the outer ring does not have
to be split into two pieces.


3.FAG Mixer Truck Bearings Ranges:
800730, 801215A, BS2B248180, 809280, 540626AA, 801806, 579905AA, 579905A,
534176, 11449, 804312A, 809281, PLC110/190, PLC59-5, GB40779 S01, CPM2513,
400365, 801216A, PLC59-10, PLC58-6, JHM522649/JHM522610, 32022X, 23222, F-
800730.PRL, F-801806.PRL, 11449, 2513D11, JHM522649/10, F-204754.RNU, 801216A,
GB40779 S01, 32022, PLC59-5, F-809280.PRL, PLC58-6, F-809280.PRL, PLC59-10, F-
804182.PRL, perfectbearing#perfectbearing#com​

Minimum Order: 1 pieces
