FB090 CuSn8P0.3 Rolled Bronze Sleeve Bearing WB800 BK090 Bronze Bushing Wit

Product Description
FB090 CuSn8P0.3 Rolled Bronze Sleeve Bearing WB800 BK090 Bronze Bushing With
Lubrication Indents



ZR-090 bronze bushing is made from high grade alloyed, hot rolled,
phosphorous tin bronze. The slide bronze bearings are especially designed to
withstand heavy loads and to be shock-resistant. The entire bearing sliding
surface consists of lubrication pockets that build up a lubricating film
that reduces friction, both at startup and during operation. ZR-090 is
intended for radial, oscillating and axial movements and are especially
suited for medium to high loads.This type of bronze bearing also called
FB090 bronze sliding bearing, WB800 bronze bearing,PRM bronze wrapped plain
bearings,MBZ-B09 Plain bronze bearing,BMZ Bronze self lubricating bearing,
BRM-10 bronze sliding bearings and etc.





Material Structure



Material: CuSn8P0.3 (DIN ISO 4382-2:1991)



ype Cu% Sn% P%
ZR-090 Bronze Bushing 91.3 8.5 0.2


Materail chemical composition refer to the standard of DIN17662 ISO 4382-2:
1991; CW453K
The actual composition proportion is allowed to up or down in certain range
based on standard


ZR-090 Bronze wrapped bushing use high density bronze strips to roll the
spherical oil pockets as material structure.We can make rolled bronze
bearing with dimond oil pockets, round oil pockets and smooth suface based
on customers requirements.

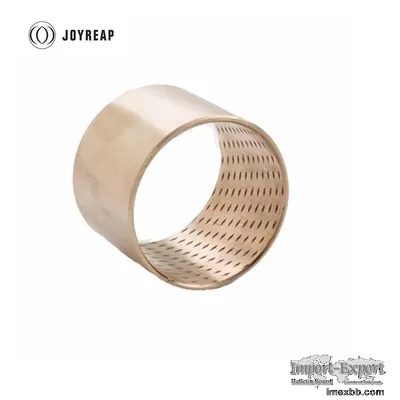

Thin Wall Wrapped Cusn8 Bronze Bearing With Oil Pockets 0



Special Designs


Rounded lubrication indents
Internal and external lubricating grooves
Without lubrication indents,smooth surface
Spherical and plain washers







Characteristics



Surface can be incorporated with spherical of diamond shaped indentations or
oil grooves linear. Particularly suitable for oscillating bearing.
High load capacity and long life.
Wide temperature range
Easy to assemble
Works well in dirty environments
Cheap than traditional bronze bush, cost saving.


Operation Performance





ZR-090 Bronze bushings Performance
Dry Operation Poor
Lubricated Operation Good
Greased Operation Good
Machinable Consult with Applications Engineer
RoHS Compliant Compliant




Shapes & forms


Plain bronze cylindrical bearings, flanged bronze bearings, bronze thrust
washers, sliding plates.







Application



ZR-090 wrapped bronze bushing is widely used in Forest- and constructional
machinery, agricultural machinery, cranes, forklifts, hoisting equipment
etc.





Technical Data



Max. Load Static 120N/mm² Elongation 40%
Dynamic 40N/mm² Operation Temperature range -100℃~+200℃
Max. Speed (lubricated) 2m/s Friction coefficient 0.08~0.25
Max. PV 2.8N/mm²*m/s Thermal conductivity 58W(m*K)-1
Tensile Strength 450N/mm² Coefficient of thermal expansion
18.5*10-6*K-1
Alloy Hardness HB 110-150




Mounting Suggestion



Housing ØH7

Bushing inner-Ø after mountingH9

Shaft tolerance f7

Housing: Mounting bevel min. 1.5 mm x 15-45°

Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6

Shaft: Mounting bevel 5 mm x 15°, edges rounded

The application of an adequate force fitting mandrel is advisable. Grease
lubrication of the outer surface may

be necessary when mounting.

Stick-in: Adhesive should not contact the sliding surface
